AT-10A

10-inch Rugged Android RTK Tablet for Precision Agriculture

Built-in RTK module, Rugged, Dustproof, and IP67 Waterproof, High-brightness 1000 nits touch screen display; rich interfaces; Octa-core 1.8GHz processor, Adreno 506 GPU, etc.

Number AT-10A

Feature Specification Accessories

AT-10A is an all-in-one tablet designed for professional needs. This tablet features a 10.1-inch 1000 nits sunlight-readable screen. The overall design complies with the IP67 (IEC60529) waterproof rating, allowing it to operate reliably in harsh outdoor environments. It is powered by a powerful Octa-core 1.8GHz processor and an 64-bit Adreno 506 GPU, which supports OpenGL ES 3.1 rendering. Built-in multiple communication modules and a professional high-precision GNSS/RTK module, enabling centimeter-level accurate positioning. The device includes abundant interfaces, such as CAN Bus, serial ports, video input, GPIOs, among others. It also has multiple robust connectors that can be customized according to specific requirements. The device is rugged and reliable design to meet diverse professional fields like agriculture, mining, special vehicles, etc. We offer comprehensive development documentation including SDK, user manuals, and flexible customization services to streamline software development and deployment.

Real-time Communication

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.

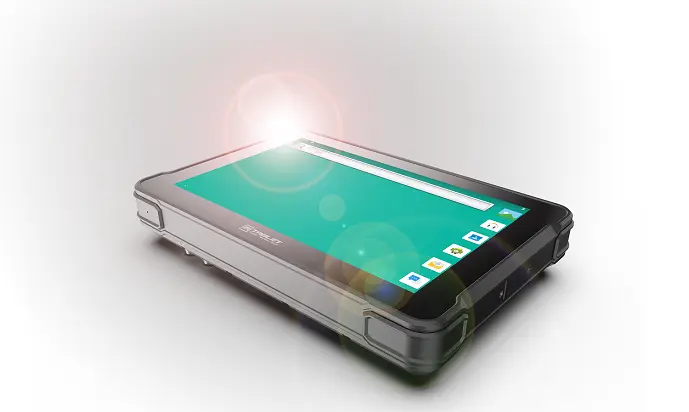

High Brightness Screen

With Multi touch capacitive touchscreen(Wet mode and glove mode are customizable.)1000 nits high brightness screen, readable in the sunlight environments.

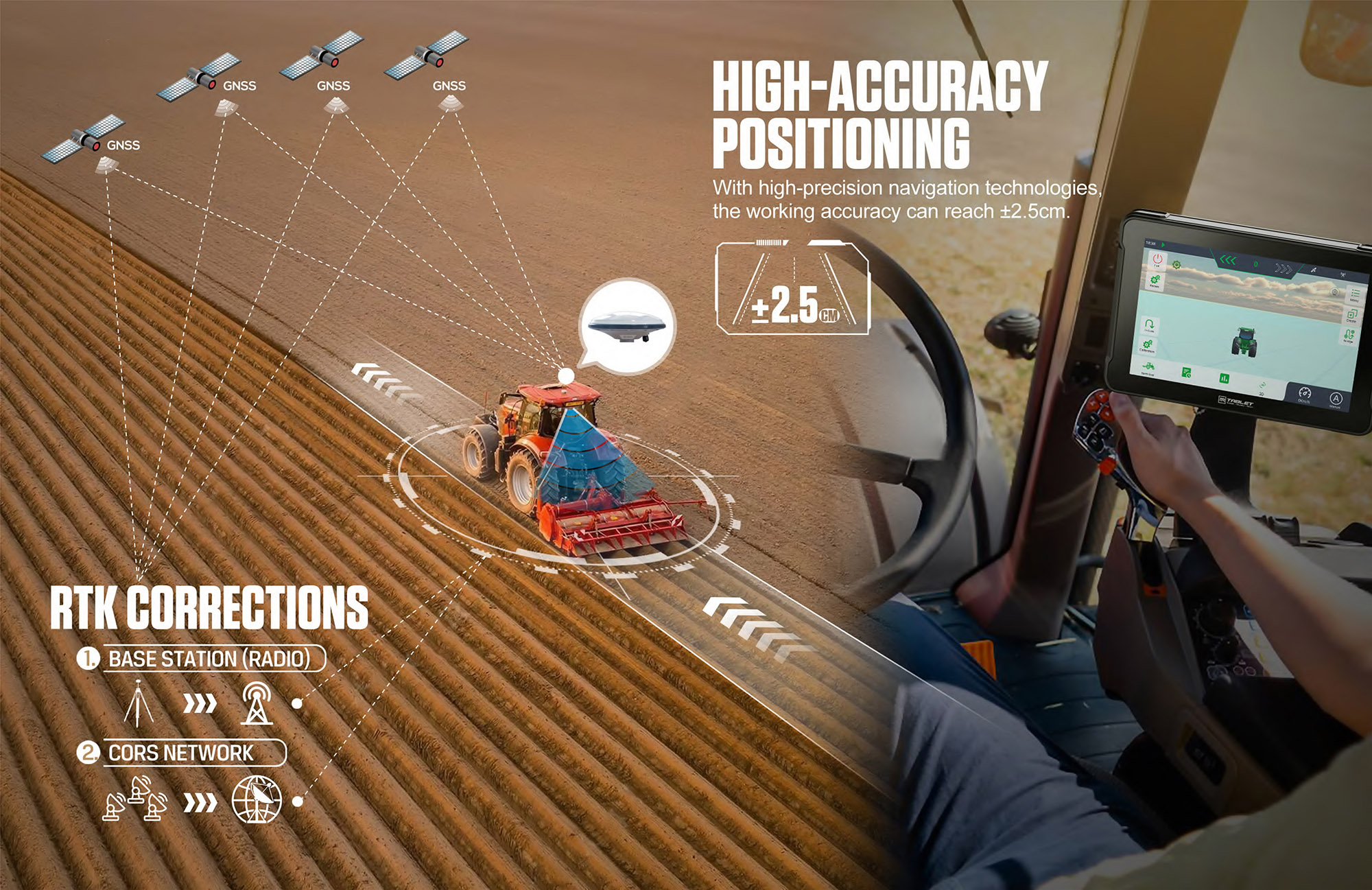

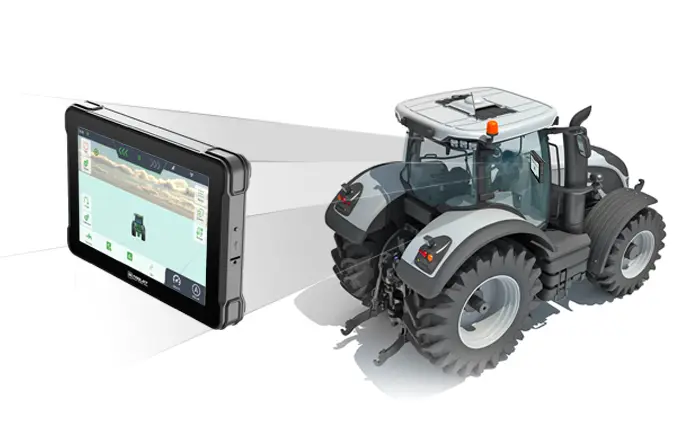

High-precision Positioning

The built-in optional professional high-precision RTK module can achieve ±2.5cm accurate positioning, which makes the tablet perform well in precision agriculture.

Mobile Device Management

Integrated with MDM software, which is convenient for users to control the equipment status in real time and carry out remote control and management.

Rich Interfaces

3Rtablet offers hardware and system customized design and integration service for the high quality demand market.With video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices.

ISO 7637 -II

Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.

Specification

System
CPU	Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz
GPU	Adreno 506 Support OpenGL ES3.1
Operating System	Android 9.0
RAM	2 GB LPDDR3(Default)/4GB(Optional)
Storage	16 GB eMMC(Default)/64GB(Optional)
Storage Expansion	Support Micro SD up to 512 GB
Communication
Bluetooth	4.2BLE
WLAN	IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz
Mobile Broadband	LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
GNSS	Standalone: 2.5m CEP
GNSS	RTK(Optional): 2.5 cm+1 ppm Horizontally; 2.5 cm+1 ppm Vertically
Radio(UHF)	Optional
Functional Module
LCD	10.1 inch HD (1280 × 800), 1000nits brightness, Sunlight readable
Touchscreen	Multi touch capacitive touchscreen(Wet mode and glove mode are customizable.)
Sound	Build-in speaker 2W,8Ω 90dB
Sound	Internal Microphones
Interfaces	Type-C, Compliant with USB 3.0, (For data transfer; support OTG)
	USB (TYPE-A)
	Headset jack ×1
Sensors	Acceleration sensors, Ambient light sensor, Compass
Functional Module Environment
Vibration test	MIL-STD-810G
Dust resistance test	IP6x(IEC60529)
Water resistance test	IP6x & IPx7(IEC60529)
Operating temperature	-20° C ~ 65°C (-4℉~149℉)
Storage temperature	-20° C ~70° C (-22℉~158℉)
Interface
RS232	×2
RS485	×1
ACC (ignition)	×1
RJ45 (10/100)	×1
AHD input (optional)	×2(1080P)
CANBUS	CAN 2.0b×2
GPIO	Input×4, Output×4
Analog input	×1(Measure Voltage Range:0~30V)
Physical Characteristics
Power	DC8-36V (ISO 7637-II compliant)
Physical Dimensions(WxHxD)	273×183×49mm
Weight	1.6kg
