VT-10A Pro

10-inch Rugged Tablet Mobile Device for Various Industrial Applications

Powered by Android 13 operating system and equipped with GPS, 4G, BT, etc. modules, VT-10A Pro shows efficency and accuracy in handling multiple tasks even in harsh environments.
Category: Rugged Driver Tablet Tags: 10-inch rugged tablet, 10" Android Rugged Tablet, Android rugged tablets, driver data terminal, industrial android tablet, Mobile Device, rugged driver tablet, rugged industrial tablet, rugged tablet android 13

  • Number VT-10A Pro
Feature Specification Accessories

●Rugged enclosure design with IP67 rating
●Qualcomm Quad-core A73, 2.0GHz and Quad-core A53, 1.8GHz
●Android 13 operating system
●Adreno TM 610
●Camera (Optional) Built-in Front: 5 MP Rear: 16 MP with LED light, built-in speakers
●Built-in WiFi, Bluetooth 5.0, 4G LTE, GPS/GLONASS/BDS/Galileo/QZSS; Internal Antenna (default);
External SMA antenna (optional)
●Extended I/O interfaces ACC Input, Power Output, GPIO (Positive Trigger Input), RS232,RS485,Video In,Analog Input,RJ45 (10/100),CANBUS,Audio Out, DC inetc

rugged tablet android 13

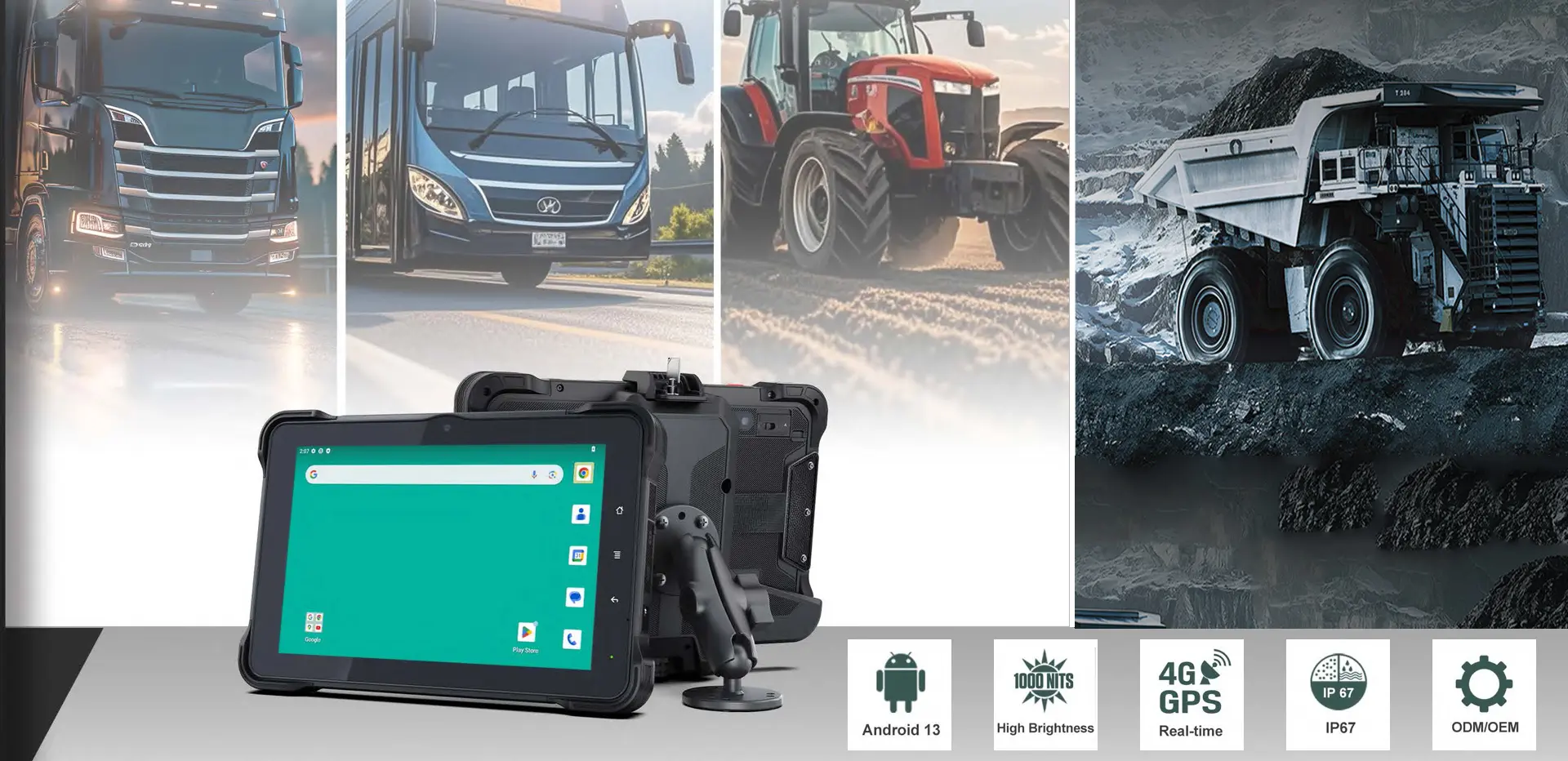

VT-10A PRO is a 10-inch rugged in-vehicle tablet designed for Internet of Vehicle applications, including fleet management, public transportation, precision agriculture, special machinery, etc. It is equipped with a 1200 nits high-brightness display to ensure clear visibility even in direct sunlight; IP67 level waterproof and dustproof design ensures stable operation even in harsh outdoor environments; Android 13 system and up to 2.0GHz octa-core processor providing high-performance computing and expansion capabili­ ties; built-in 4G/WiFi/Bluetooth and multi-mode connections, GNSS satellite positioning functionand CANBus protocol help realize real-time tracking and communication services. With VT-10A pro, enterprises can improve the efficiency of fleet management and solution companies can provide more competitive products.

Octa-core CPU

Octa-core CPU

The VT-10A Pro combines all the modern features your workforce needs—packed into one powerful, rugged device. equipped with a Qualcomm octa-core CPU, Kryo Gold (quad-core high performance, 2.0 GHz)+ Kryo Silver (quad-core low power consumption, 1.8 GHz), which is suitable for multitasking and complex computing scenarios with its high performance and energy efficiency., it ensures smooth and reliable performance in demanding environments.
IP672

Engineered for Rugged Reliability

Unlike many mobile data terminals that struggle in harsh conditions, the VT-10A Pro is built to perform where others fail. Featuring a 7H hardness touchscreen, the tablet effectively resists scratches and wear. The IK07-rated shell withstands 2.0 Joule mechanical impacts. Comply with IP67 and MIL-STD-810G standards enclosure and a ruggedized design, it easily withstands gainst dust, water ingress, and vibration, snow, subzero temperatures, and rough handling—making it ideal for demanding industrial and in-vehicle environments.
Android 13 OS

Android 13 OS

Powered by Android 13, it ensures consistent, stable, and reliable performance with seamless and efficient operation of application

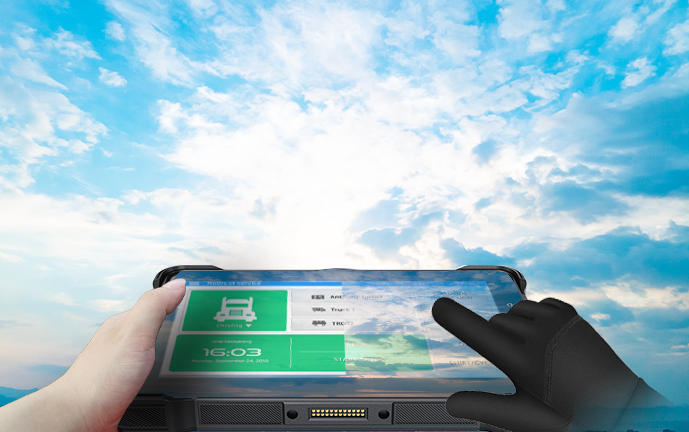

1200 Nits & Customizable Screen

Sunlight Readable 1200 Nits & Customizable Screen

10-inch 1280*800 HD screen with 1200 nits brightness, users can clearly read screen in outdoor strong light environments. Supporting customized glove touch and wet touch screen, well touch response can be achieved whether gloves are worn or the screen is wet.

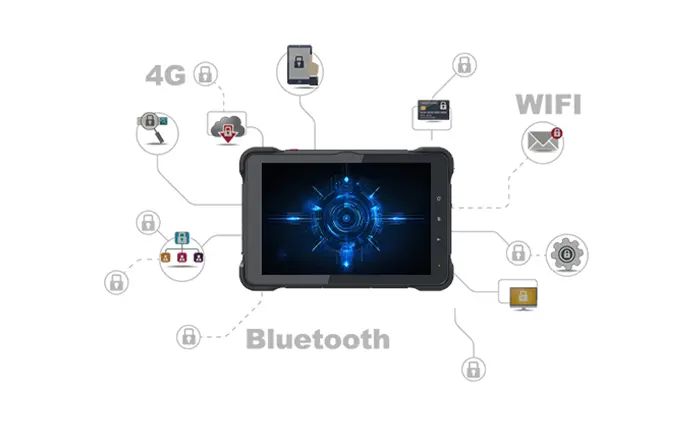

GPS4

Reliable Connectivity & Real-Time Tracking

Stay connected and accurately positioned—anytime, anywhere.
Support LTE, HSPA+, dual-band Wi-Fi (2.4GHz/5GHz)and Bluetooth 5.0 LE, covering mainstream wireless protocol. With the four satellite systems of GPS+GLONASS+BDS+Galileo for precise, real-time location tracking, even in remote or obstructed environments.
Tested and trusted for harsh scenarios—from indoor facilities to deserts and underground zones—the VT-10A Pro delivers stable signal performance, global compatibility, and seamless data communication in the field.
ISO 7637-II

ISO 7637 -II

DC8-36V wide voltage power input design. Comply with ISO 7637-II standard transient voltage protection. Withstand up to 174V 350ms vehicle power pulse.
Rich Extended Interfaces

Docking Station – Secure, Smart, and Expandable

The docking station features a secure locking mechanism that holds the tablet firmly in place, ensuring safety during operation and transit. Rich extended interfaces including GPIO, RS232, CAN 2.0b (optional dual channel), RJ45, RS485, video input, etc., can be applied to vehicle equipment connection and vehicle control. We also provide the customized services for required functional interfaces.

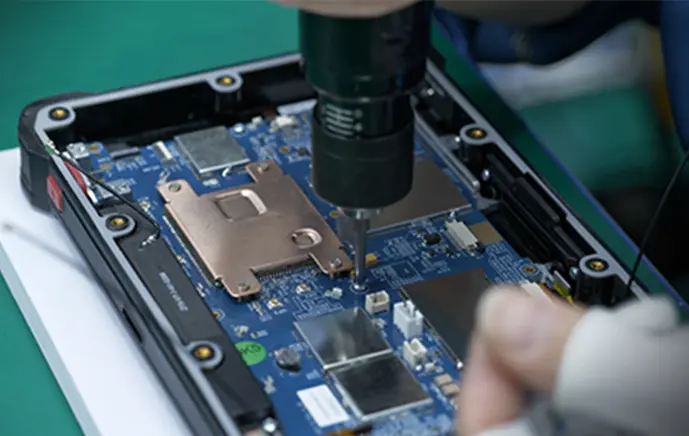

Customized Service ODM OEM

Customized Service (ODM/OEM)

Integrate multiple functions, such as NFC, eSIM card and Type-C, more functions can be customized according to different needs.

Specification

System

CPU

Qualcomm Quad-core A73, 2.0GHz and Quad-core A53, 1.8GHz

GPU

Adreno TM 610

Operating System

Android 13

RAM

4GB RAM (default) / 8GB (optional)

Storage

64GB FLASH (default) / 128GB (optional)

Storage Expansion

Micro SD card, up to 1TB

Functional Module

LCD

10.1 inch HD (1280×800), 1200cd/m², Sunlight readable

Touchscreen

Multi touch capacitive touchscreen

Camera (Optional)

Front: 5 MP



Rear: 16 MP with LED light

Sound

Build-in speaker 2W, 85dB; Internal microphones

Interfaces

Type-C, Compliant with USB 3.0, (For data transfer; support OTG)



Docking connector×1 (POGO-PIN×24)



SIM Card ×1 (default); eSIM×1 (optional)



Headset jack ×1

Sensor

Acceleration, Ambient Light, Compass, Gyroscope

Communication

Bluetooth

2.1 EDR/3.0 HS/4.2 BLE/5.0 LE

WLAN

802.11a/b/g/n/ac;2.4GHz&5GHz

Mobile Broadband (NA Version)

LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71



LTE-TDD: B41; Internal Antenna; External SMA antenna (optional)

Mobile Broadband (EM Version)

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28



LTE TDD: B38/B39/B40/B41



WCDMA: B1/B2/B4/B5/B8



GSM: 850/900/1800/1900 MHz; Internal Antenna (default),



External SMA antenna (optional)

　

ISO/IEC 14443A, ISO/IEC 14443B PICC mode

NFC (Optional)

ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed according to NFC Forum



digital protocol T4T platform and ISO-DEP



FeliCa PCD mode



MIFARE PCD encryption mechanism (MIFARE 1K/4K)



NFC Forum tags T1T, T2T, T3T, T4T and T5T  NFCIP-1, NFCIP-2 protocol



NFC Forum certification for P2P, reader and card mode



FeliCa PICC mode



ISO/IEC 15693/ICODE VCD mode



NFC Forum-compliant embedded T4T for NDEF short record

GNSS

GPS/GLONASS/BDS/Galileo/QZSS; Internal Antenna (default);



External SMA antenna (optional)

Environments

Vibration Test

MIL-STD-810G

Dust Resistance Test

IP6x

Water Resistance Test

IPx7

Operating Temperature

-10° C ~ 65°C (14°F-149°F)



0° C ~ 55°C (32°F-131°F)(charging)

Storage Temperature

-20° C ~70° C

Physical Characteristics

Power

DC8-36V (ISO 7637-II compliant)



Battery: User replaceable Li-ion 8000 mAh



Battery operating time: about 4.5hours (typical)



Battery charging time: about 4.5hours

Physical Dimensions

277×185×31.6mm (W×D×H)

Weight

1450g
