VT-7A PRO

7-inch Android Rugged Driver Tablet for Fleet Management

VT-7A Pro adopts advanced Android 13 operating system, Various modules and accessories can be selected to meet customers’ application in various industries

  • Number VT-7A PRO
Feature Specification Accessories

Category: Rugged Driver Tablet Tags: 7" Android Rugged Tablet, 7" Android Rugged Tablet VT-7A Pro, Android rugged tablets, driver data terminal, industrial android tablet, Mobile Device, rugged driver tablet, rugged industrial tablet

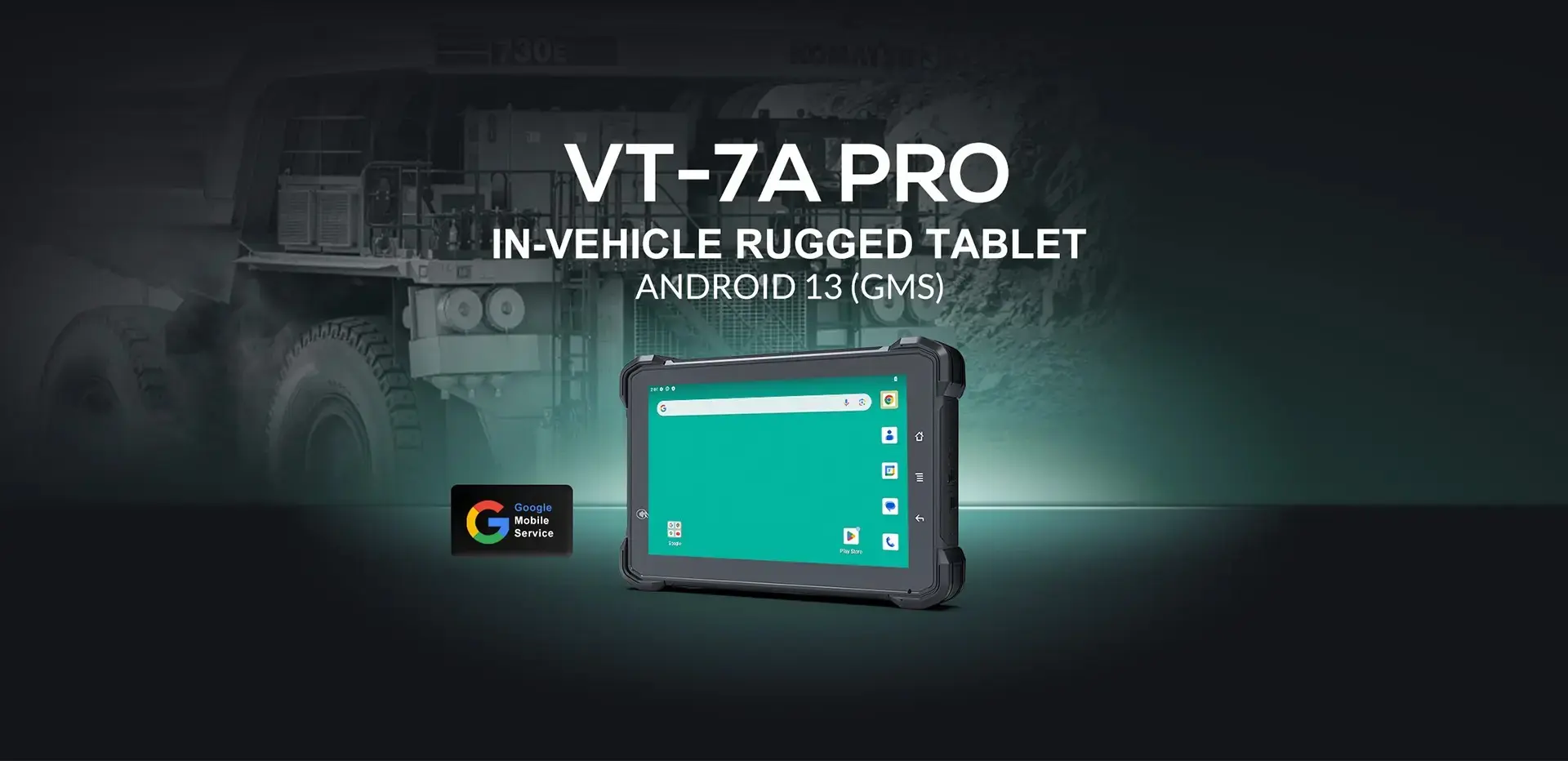

VT-7A-PRO1

VT-7A Pro is the latest 3Rtablet’s offering which is specially designed by keeping in view the latest market trends. It is an all-in-one rugged detachable, portable, and high-performance vehicle-mounted Mobile Data Terminal that provides an outstanding user experience. VT-7A Pro is the 7-inch special, smart and intelligent mobile data terminal with a 800 nits brightness and daylight viewable TFT-LCD, LED backlight. Moreover, it is equipped with Android 13 OS, 5000mAh battery and Qualcomm Quad-core A73, 2.0GHz and Quad-core A53,1.8GHz processor which results in high-performance prolonged battery backup and low power consumption. In addition to this, various features such as different wireless communication modules, make it as the best choice. Taking all these factors into consideration, it can be a perfect companion for a mobile workforce in including trucks (also forklift trucks), buses, coaches, school buses, taxis, police cars, as well as in mining, construction, agriculture, and waste vehicles.

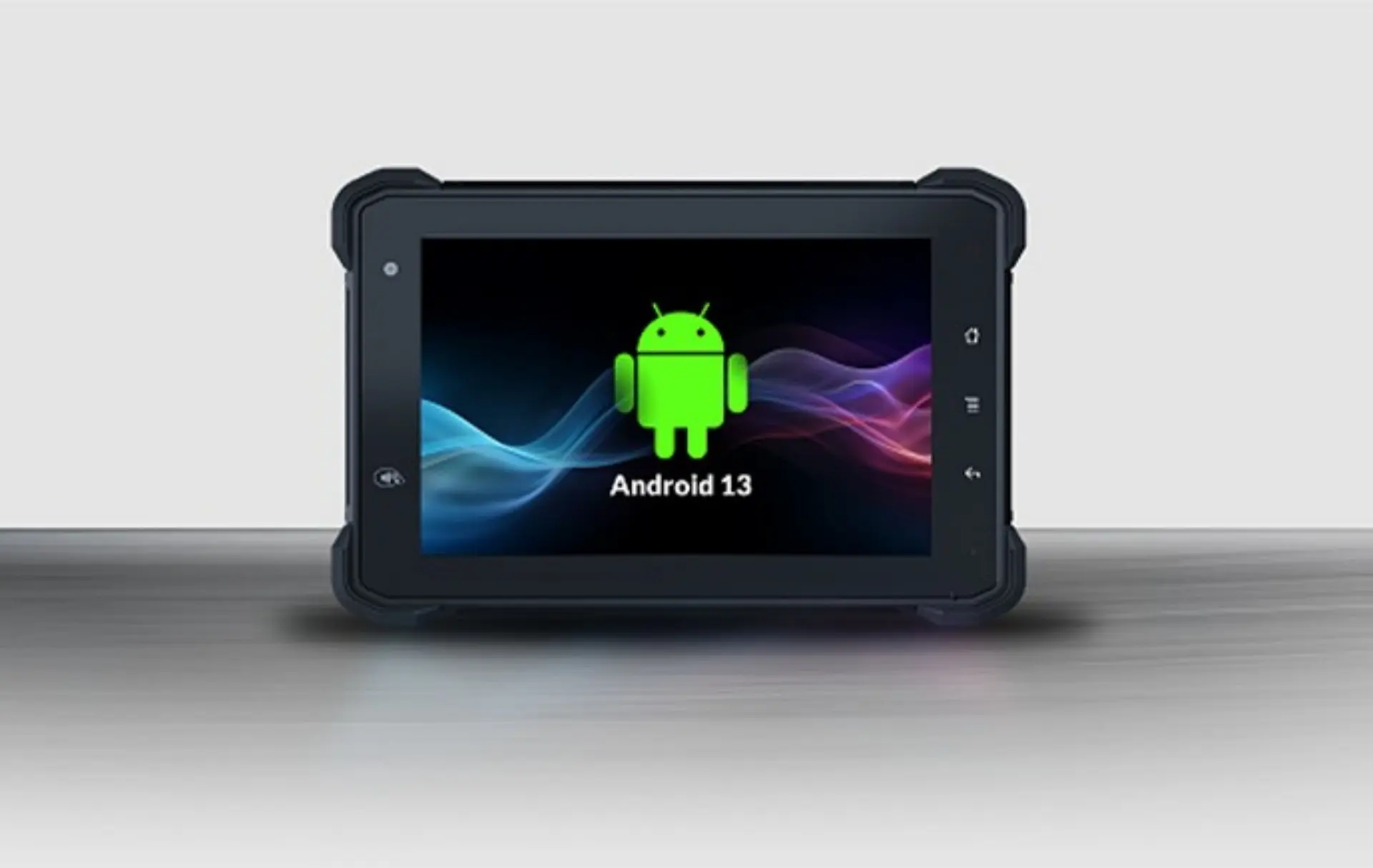

system

All-In-One Approach Makes Android 13 (GMS) a Perfect Choice

With GMS official certification, users can make full use of the services provided by Google. And the certification also ensures the functional stability and compatibility of the device. VT-7A Pro comprehensively covers all the modern features in one device. It is equipped with the latest Android 13 operating system. Qualcomm 64-bit Octa-core processor, up to 2.0 GHz and an advanced touch screen technology that gives an outstanding user experience to the end-user.

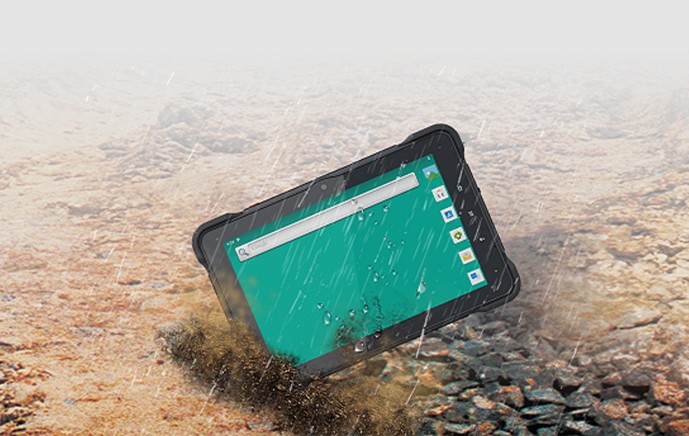

IP672

Rugged and Durable

Comply with IP67 waterproof and dust proof rating, Water & dustproof design can meet the in-cab harshest environment. No matter whether in the hottest or the coldest. can still work smoothly to help drivers.1.2m drop resistance, MIL-STD-810G shockproof and impact-resistant standard.

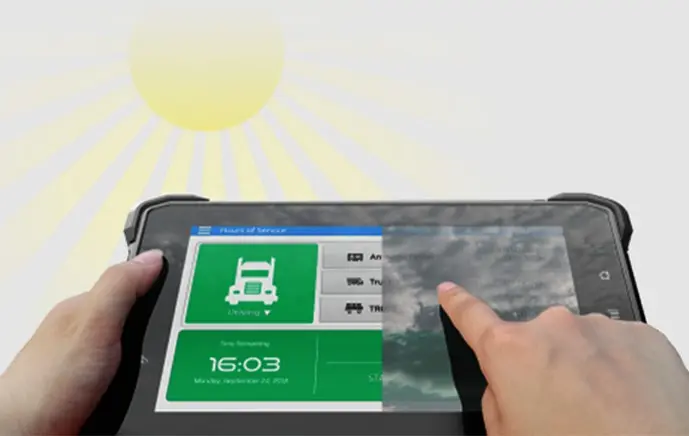

800

High Brightness Screen

The 7-inch screen with 1280*800 resolution and 800 nits brightness, ensuring that users can clearly identify the content on the screen in an outdoor environment. With its highly responsive Multi-point Capacitive Touch Screen input capabilities, this powerful rugged tablet gives all of your workers the flexibility to quickly and comfortably complete any task at their hands. Thus, it makes the perfect companion for your logistics mobile workforce.
4G3

Real-time Communication

Reliable Network Module for Many Industrial Applications
It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4 communication module, which is convenient for tracking management. Different industrial, applications under different conditions like an indoor, desert , cave and much more, need a reliable network module to keep the device connected with and let you make full use of Tablet .

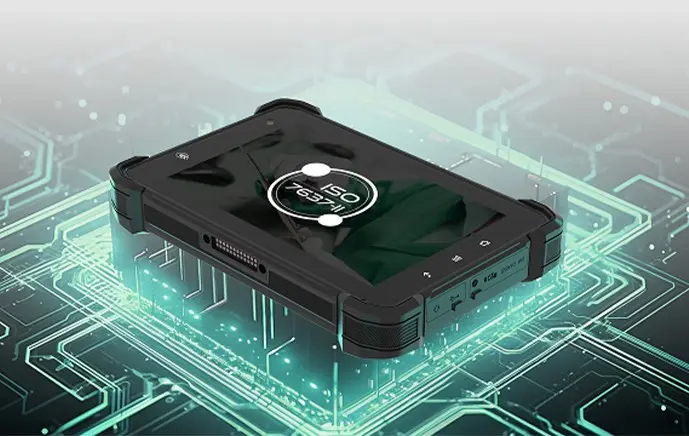

ISO2

ISO 7637 -II

ISO 7637-II transient voltage protection standard, which can withstand 174V 300ms automobile impact. With the design of a wide voltage range DC8-36V power supply to improve the reliability and stability.
MDM4

Mobile Device Management

Support most MDM software on the market, which is convenient for customers to control and manage equipment in real time.
5Extended Interface

Rich Interfaces, Compact Design, Easy for Portable Use

The compact design of VT-7A Pro makes it aesthetically attractive and easy for portable use. The portability of a device will help your workers to work smarter. Extendable Storage, Docking Station, RS232, ACC, USB Type-C, CANBUS, camera Video input, Analog Input, RJ45 etc., and is suitable for various kinds of vehicle. We also provide the customized services for required functional interfaces.
OTA

OTA

Our team at 3Rtablet technical will update the security patch to the terminal devices every 3 months.

Specification

System

CPU

Qualcomm Quad-core A73, 2.0GHz and Quad-core A53,1.8GHz

GPU

Adreno 610

Operating System

Android 13

RAM

LPDDR4 4GB (default)/8GB (optional)

Storage

eMMC 64G (default)/128GB (optional)

LCD

7 Inch Digital IPS Panel, 1280×800, 800 nits

Screen

Multi-point Capacitive Touch Screen

Audio

Integrated microphone; Integrated speaker 2W

Camera

Front: 5.0 megapixel camera (optional)

Rear: 16.0 megapixel camera (optional)

Sensor

Acceleration, gyro sensor, compass,

ambient light sensor

Physical Characteristics

Power

DC8-36V (ISO 7637-II compliant)

Battery

3.7V, 5000mAh battery

Physical Dimensions

133×118.6×35mm(W×H×D)

Weight

305g

Drop test

1.2m drop-resistance

IP rating

IP67

Vibration test

MIL-STD-810G

Work temperature

-10°C ~ 65°C (14°F ~ 149°F)

Storage temperature

-20°C ~ 70°C (-4°F ~ 158°F)

Interface (On Tablet)

USB

Type-C×1 (can not be used together with

　

USB Type-A)

Micro SD Slot

Micro SD card×1, Support up to 1T

SIM Socket

Micro SIM Card slot×1

Ear jack

3.5mm headphone jack compliant with

　

CTIA standard

Docking connector

POGO PIN×24

Communication

GNSS

GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna;

External SMA antenna(optional)

Mobile Broadband

· LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71

(NA Version)

· LTE-TDD: B41, External SMA antenna(optional)

· LTE FDD: B1/B3/B5/B7/B8/B20

Mobile Broadband

· LTE TDD: B38/B40/B41

(EM Version)

· WCDMA: B1/B5/B8

· GSM: 850/900/1800/1900MHz

WIFI

802.11a/b/g/n/ac; 2.4GHz&5GHz;external SMA antenna(optional)

Bluetooth

2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE;external SMA antenna(optional)

NFC (Optional)

· ISO/IEC 14443A, ISO/IEC 14443B PICC mode

· ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed

  according to NFC Forum

· digital protocol T4T platform and ISO-DEP

· FeliCa PCD mode

· MIFARE PCD encryption mechanism (MIFARE 1K/4K)

· NFC Forum tags T1T,T2T,T3T,T4T and T5T NFCIP-1,NFCIP-2 protocol

· NFC Forum certification for P2P, reader and card mode

· FeliCa PICC mode

· ISO/IEC 15693/ICODE VCD mode

NFC Forum-compliant embedded T4T for NDEF short record

Extended Interface (Docking Station)

RS232

×2

ACC

×1

Power

×1 (8-36V)

GPIO

Input ×3, Output ×3

USB TYPE-A

USB 2.0×1,  (can not be used together with USB Type-C)

Analog Input

×1 (standard); ×2 (optional)

CANBUS

×1 (optional)

RS485

×1 (optional)

RJ45

×1 (100 Mbps, optional)

AV Input

×1 (optional)
