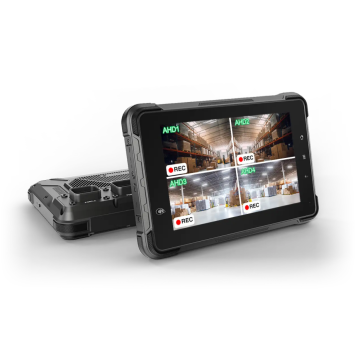

ST-7 Rugged Tablet

7-Inch Android Tablet Built for Industrial and Vehicle Applications

The ST-7 is a high-performance 7-inch rugged tablet designed for harsh industrial environments and vehicle-mounted scenarios. Running on Android 13 OS, It delivers exceptional value in driver assistance systems.

  • Number ST-7 Rugged Table
Feature Specification Accessories

● 7″ Sunlight-Readable Display, up to 1000 nits
● Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz
● Android 13 operating system
● Memory Default : 4GB + 64GB / Options 8GB + 128GB
● Built-in WiFi, 4G LTE, Bluetooth, GPS/GLONASS/BDS/Galileo/QZSS
● Supports up to 6 AHD Cameras for real-time video input
● Rich I/O interfaces including GPIO, RS232, RS485, Ethernet (RJ45), Power Output and CAN bus

ST7

ST-7 is a 7-inch rugged tablet with highly integrated functions. It powered by Android 13 system and equipped with a Qualcomm 64-bit octa-core processor supporting a maximum main frequency of 2.0G. Built-in communication modules such as GPS, 4G, WiFi, Bluetooth, and NFC (optional) make it easier to be applied in various loT application scenarios. This tablet features rich interfaces including RS232, GPIO, USB, ACC, AHD, and LAN (optional), facilitating collaboration with more external devices in different application scenarios. With its rugged design and waterproof capability, the ST-7 operates smoothly and reliably in challenging vehicle-mounted outdoor environments.

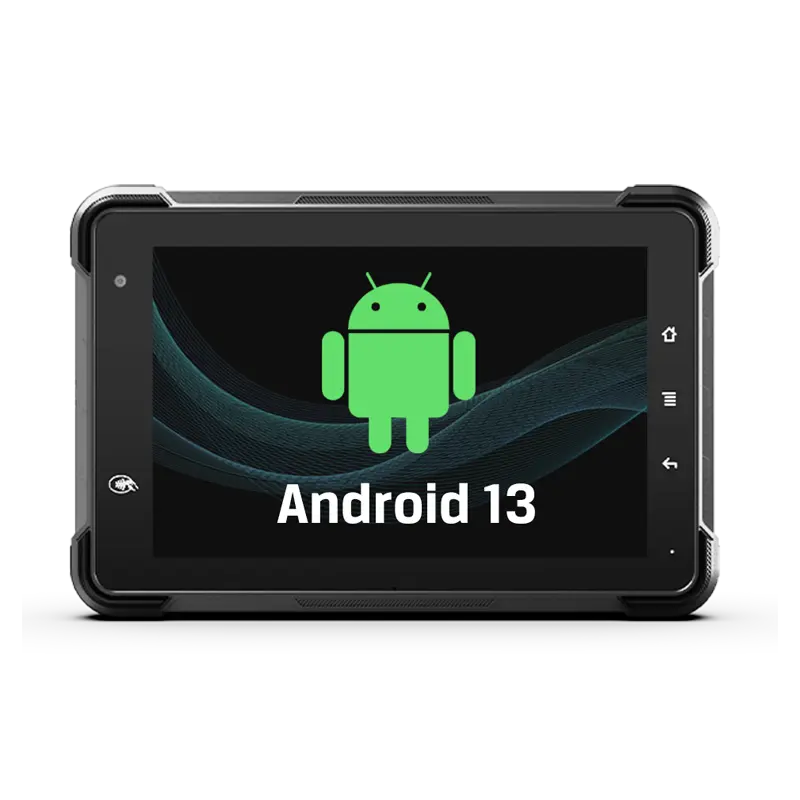

ST-7-Android-13

Android 13 OS

Equipped with the powerful new Android 13 system,the tablet delivers

improved stability, enhanced security, and broader app compatibility for enterprise use.

4G-GPS

Real-time Communication, Wherever You Go

It has four satellite systems: GPS, GLONASS, BDS and Galileo ensures reliable global positioning for any mobile deployment. and has built-in LTE CAT4, WiFi/Bluetooth 5.0 and NFC communication modules, which is convenient for tracking and management.
Ultra-bright-Screen

7 inch Ultra-bright Screen

The 7-inch 1000-nit display ensures better visual experience even in strong light environment.perfect for outdoor or in-vehicle usage.

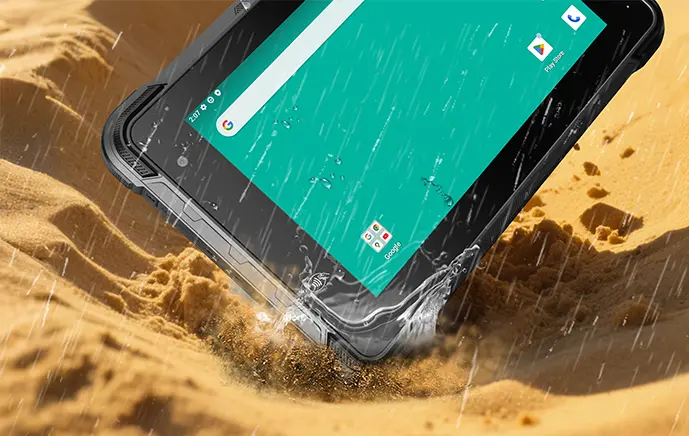

ip67-Rugged-and-Reliable-Design

Rugged and Reliable Design

MIL-STD-810G standard, Comply with IP67 ratings Sealed enclosure design to protect against water jets, dust, and vibrations—ideal for outdoor, warehouse, and harsh vehicle environments.

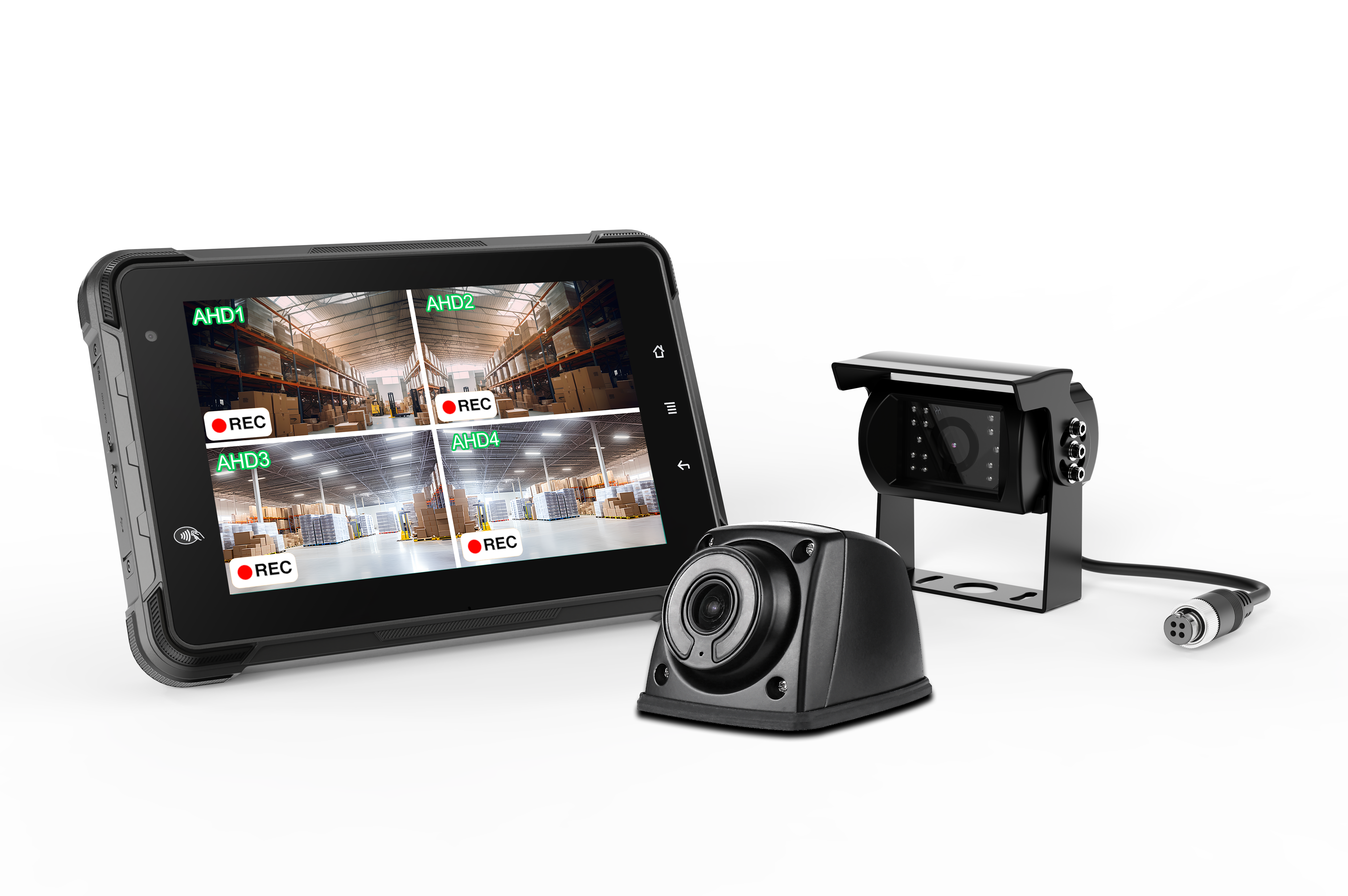

Multi-channel-Video-Surveillance

Advanced Multi-channel Video Surveillance (Optional)

Supports AHD 720P/1080P video inputs with real-time preview and recording capabilities. enabling real-time video surveillance, safety monitoring, or driver behavior analysis in logistics and fleet operations.

The GPIO inputs are configurable for custom screen display switching. A 1TB micro SD card slot is integrated to accommodate high-capacity storage requirements.

ST-7-Amphenol-interface

Rich Functional Interfaces

Support rich interfaces such as RS232, USB, ACC, LAN and CANBUS, and two custom function buttons. Make it highly integrated with rich functions to be applied to various application scenarios.
ISO-7637-II

ISO 7637-II

Apply DC8-36V wide voltage power input design. Comply with ISO 7637-II transient voltage protection standard, which can withstand up to 174V 350ms vehicle surge impact.

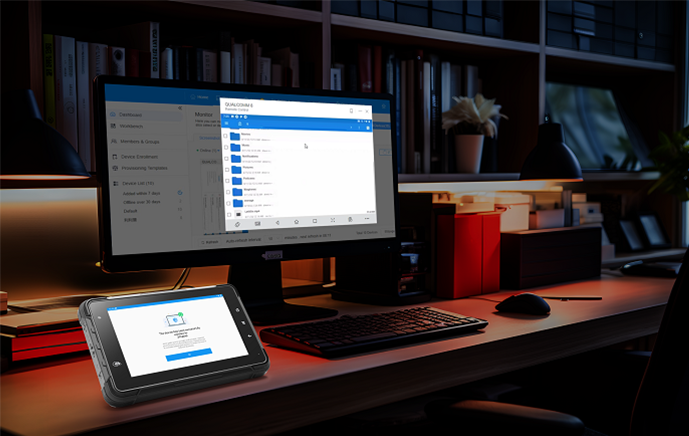

Mobile-Device-Management

Mobile Device Management

MDM software can be deployed on the tablet, enabling users to conduct more in-depth device and application management.

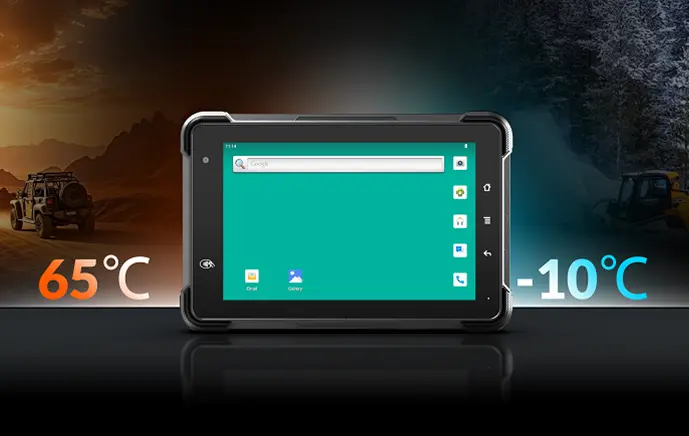

Wide-Temperature-Work-Design

Wide Temperature Work Design

This tablet can operates in temperatures ranging from -20°C to 65°C and be stored in temperatures from -30°C to 75°C. It can be sold and used in most parts of the world.

Specification

System

CPU

Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz

GPU

Adreno 610

OS

Android 13

RAM

LPDDR4 4GB (default)/8GB (optional)

Storage

eMMC 64G (default)/128GB (optional)

Functional Module

LCD Screen

7 Inch, 1280× 800, 1000 nits

Multi-point Capacitive Touch Screen

Audio

Integrated microphone

Integrated speaker 2W

Sensor

Acceleration, Gyro sensor, Compass, Ambient light sensor

Button

Power button×1; Customizable buttons×2

Camera

Front: 5.0 megapixel camera (optional)

On Tablet Interface

USB Type-C

Type-C3.1 (Type-A and Type-C cannot be used

simultaneously), and it does not support to charge

the built-in battery.

Micro SD Slot

Micro SD card slot×1, support up to 1TB

SIM Slot

Nano SIM card slot×1(default), eSIM card×1(optional)

Earphone Jack

3.5mm headphone jack compliant with CTIA standard

Connectors(optional)

Port A-26PIN, Port B-26PIN (Amphenol), M8-4PIN×2

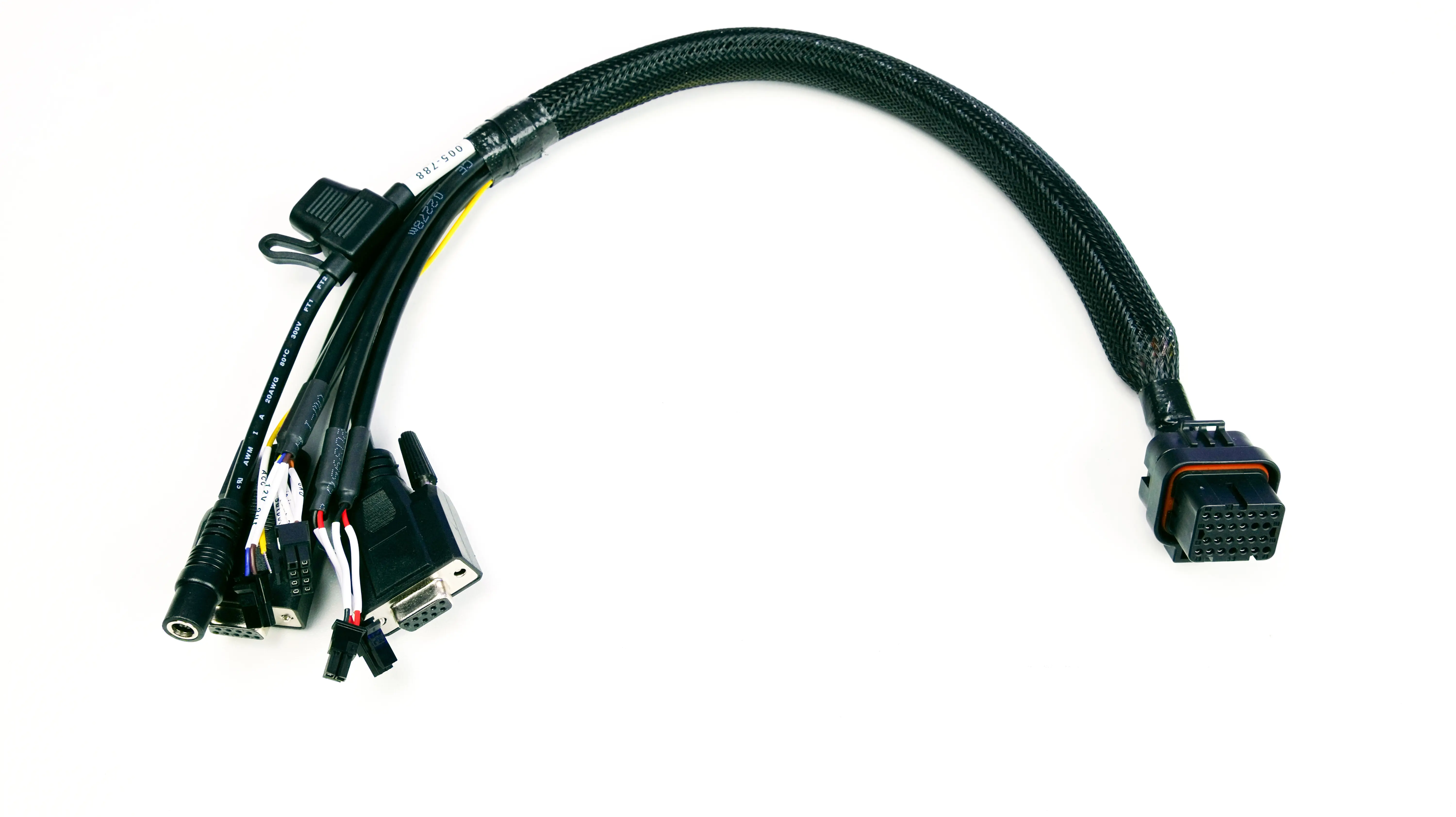

Extended Cable

Serial Port

RS232_1 ×1

RS232_1 ×1

RS485

×1

CANBUS

CANBUS_1 ×1

CANBUS_2 ×1 (optional) (Occupy the function of RS232_2)

GPIO

GPIO Input ×3, GPIO Output ×3

ACC

×1 (0-36V)

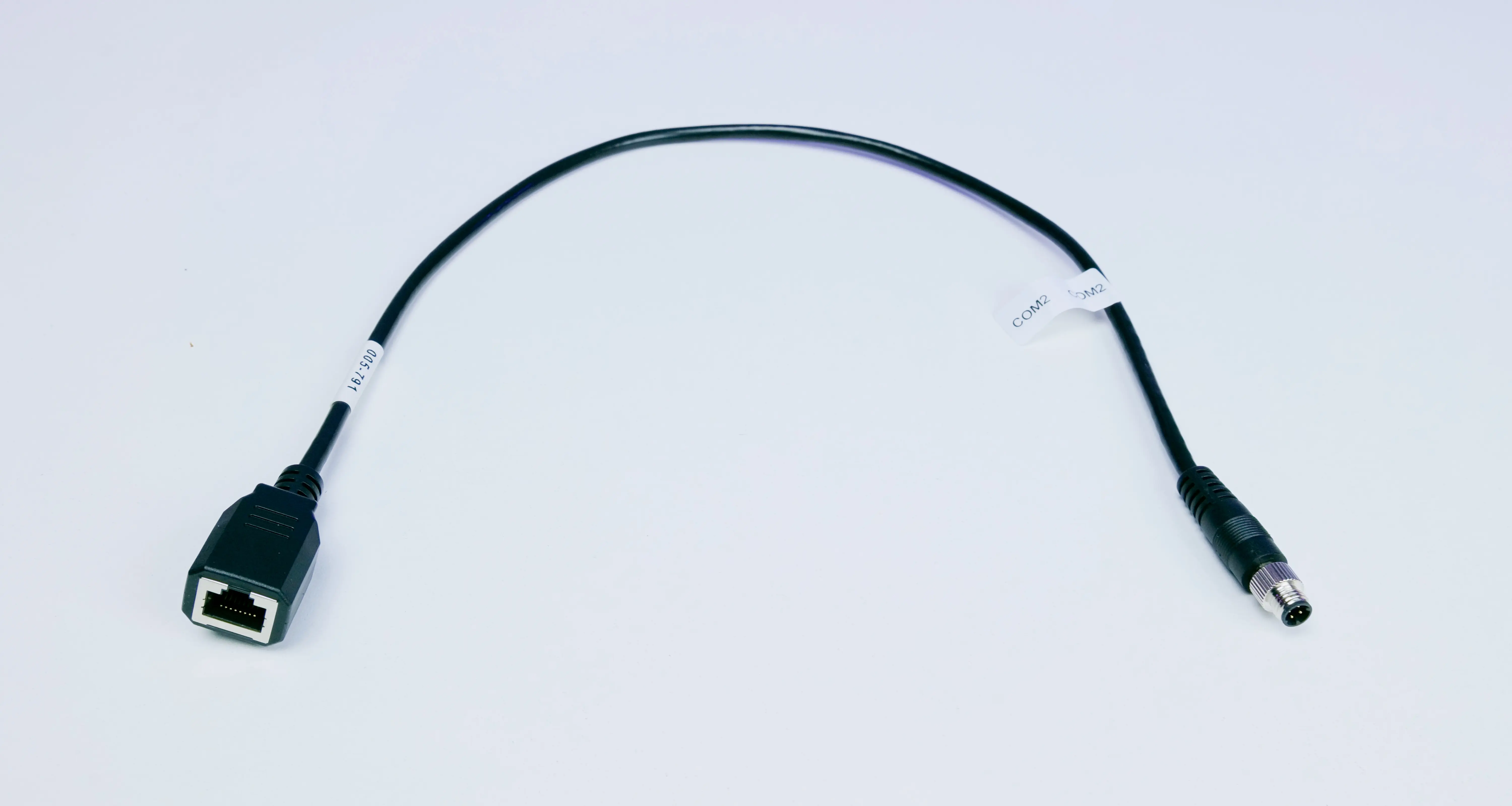

RJ45

×1 (100 Mbps) (optional)

Power Input

×1 (8-36V), the system can read the power input voltage.

Power Output

×1 (8-36V), power input loops out power output,

max-current 1A, controlled by system

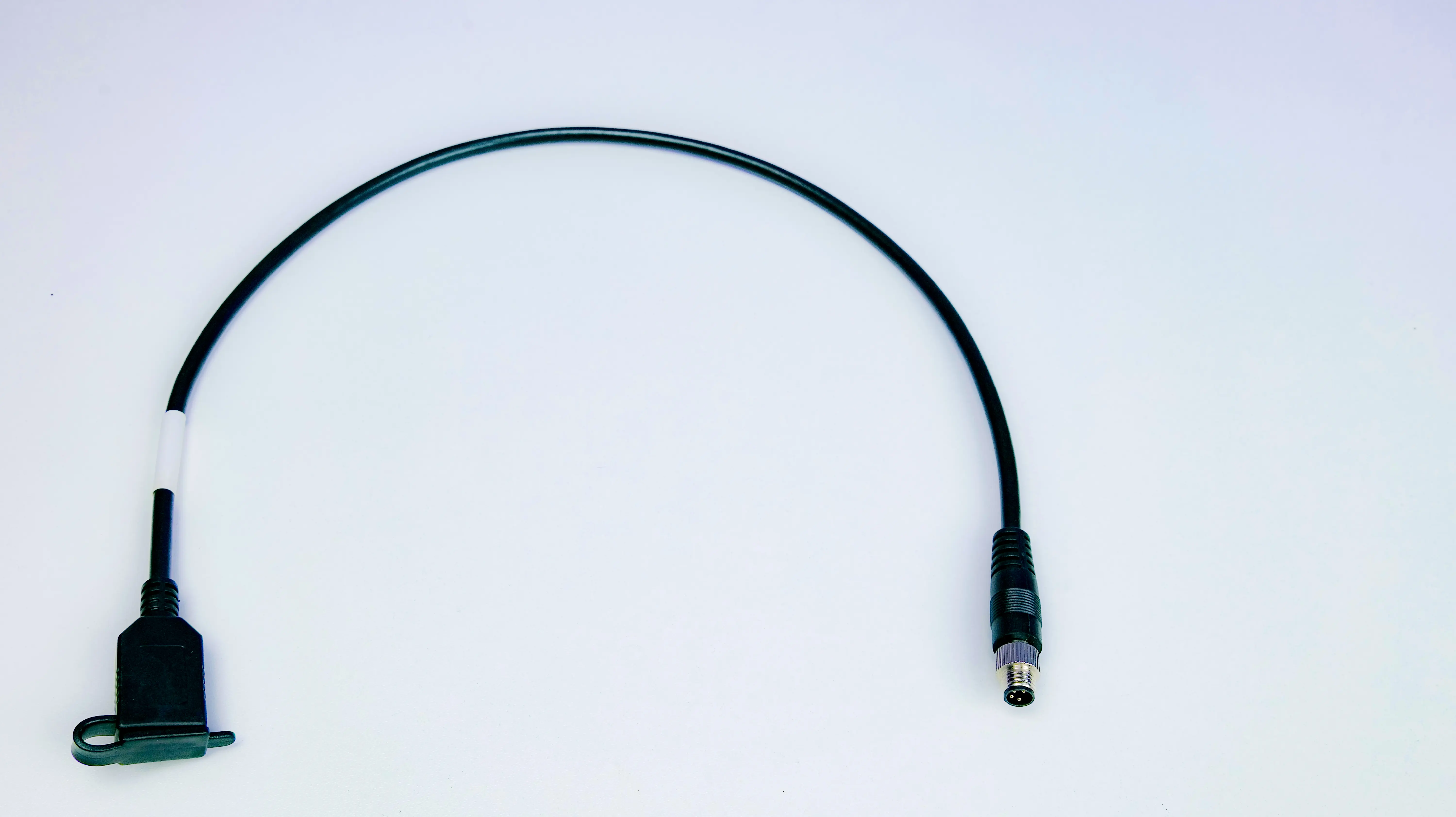

USB TYPE-A

USB-A 2.0×1 (optional) (Type-A and Type-C can not

be used simultaneously)

Video Input

×4/×6 (optional), AHD 720P/1080P, PAL/NTSC,

with 12V 500mA output for AHD camera power.

GPIO Input

×6 (optional), Support functions like enlarging the

AHD camera preview screens after triggering IO.

Communication

GNSS

GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna

2G/3G/4G

US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/

B17/B25/B26/B66/B71

LTE-TDD: B41, Internal Antenna; Fraka Antenna (optional)

EM Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28

LTE TDD: B38/B39/B40/B41

WCDMA: B1/B2/B4/B5/B8

GSM: 850/900/1800/1900 MHz, Internal Antenna;

Fraka Antenna (optional)

WLAN

802.11a/b/g/n/ac; 2402~2482 MHz, 5180~5825 MHz,

Internal Antenna; Fraka Antenna (optional)

Bluetooth

2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE, Internal Antenna;

Fraka Antenna (optional)

NFC (optional)

Operates at 13.56MHz (HF)

ISO/IEC 14443A, ISO/IEC 14443B PICC mode

ISO/IEC 14443A, ISO/IEC 14443B PCD mode

designed according to NFC Forum

digital protocol T4T platform and ISO-DEP

FeliCa PCD mode

MIFARE PCD encryption mechanism (MIFARE 1K/4K)

NFC Forum tags T1T, T2T, T3T, T4T and T5T

NFCIP-1, NFCIP-2 protocol

NFC Forum certification for P2P, reader and card mode

FeliCa PICC mode

ISO/IEC 15693/ICODE VCD mode

NFC Forum-compliant embedded T4T for NDEF short record

Physical Characteristics

Power

DC8-36V (ISO 7637-II compliant)

Battery

3.7V, 2800mAH removable battery

Dimensions

210.2×140.2×42.3mm (W×H×D)

Weight

885g

Environmental Reliability

IP Rating

IP67

Vibration Test

MIL-STD-810G

Operating Temperature

-20°C ~ 65°C (-4°F ~ 149°F)

Storage Temperature

-30°C ~ 75°C (-22°F ~ 167°F)
