VT-7 GA/GE

7 inch Rugged Android Vehicle tablet Terminal certified by Google Mobile Services

Powered by Android 11 system and equipped with Octa-core A53 CPU, it’s main frequency support up to 2.0G. Built-in GPS, 4G, Wi-Fi, Bluetooth, NFC etc.

Number VT-7 GA/GE

Feature Specification Accessories

7 inch Rugged Android Vehicle tablet Terminal certified by Google Mobile Services

It is a feature-rich rugged tablet which is equipped with Octa-core A53 CPU. Equipped with Android 11 system, the tablet is officially certified by Google Mobile Services. Built-in GPS, 4G, Wi-Fi, Bluetooth, NFC and other communication module make it easier to be applied to various loT-related applications. The tablet, with interfaces such as RS232, GPIO, USB, ACC etc, can be used with more peripheral devices. Robust designed with IP67 waterproof and dust-proof performance make the tablet perfectly work in harsh outdoor environments.

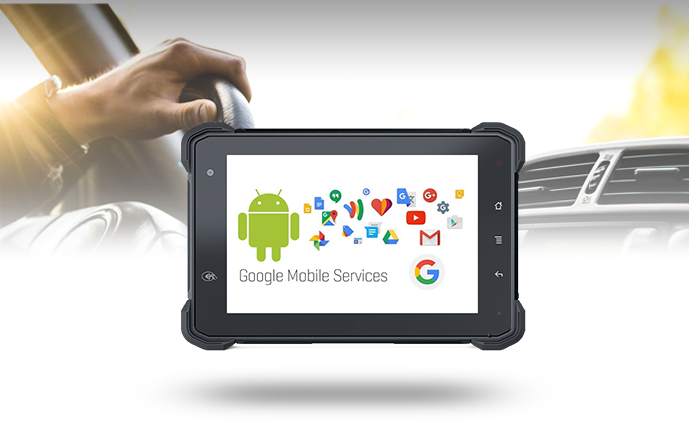

Google Mobile Services

Certified by Google GMS. Users can better enjoy Google services and ensure the functional stability and compatibility of the device.

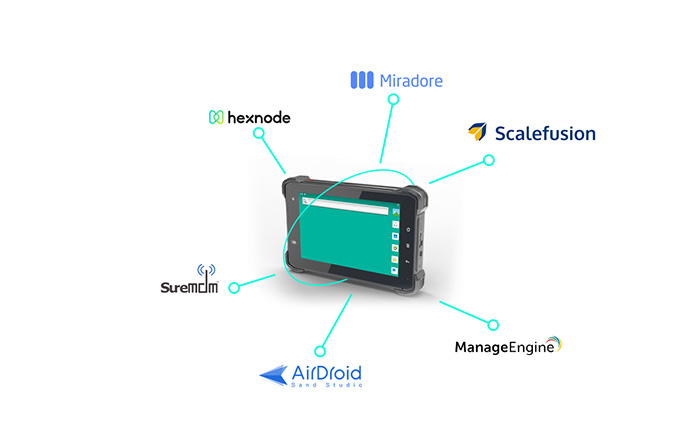

Mobile Device Management

Support several MDM management software, such as AirDroid, Hexnode, SureMDM, Miradore, Soti, etc.

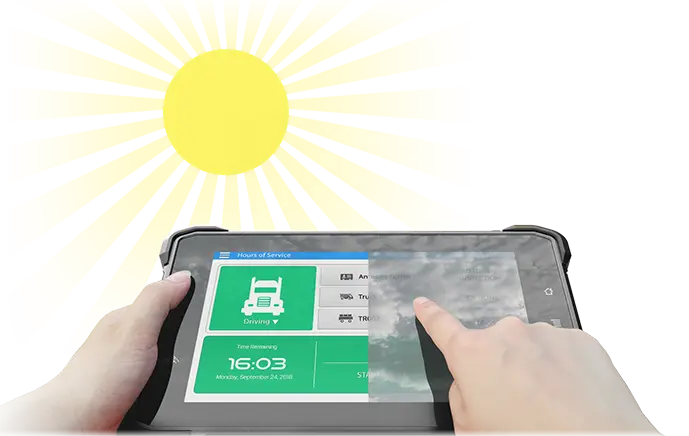

Sunlight Readable Screen

800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle. 10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

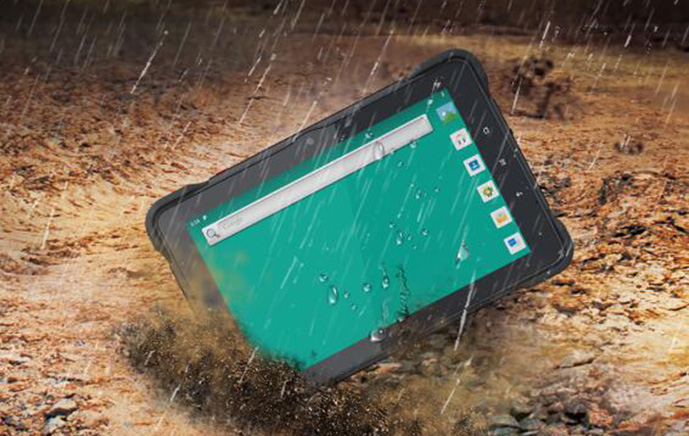

IP67 Waterproof All-round Ruggedness

TPU material corner drop protection provides all-round protection for tablet. Compliance with IP67 rating dust-proof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.

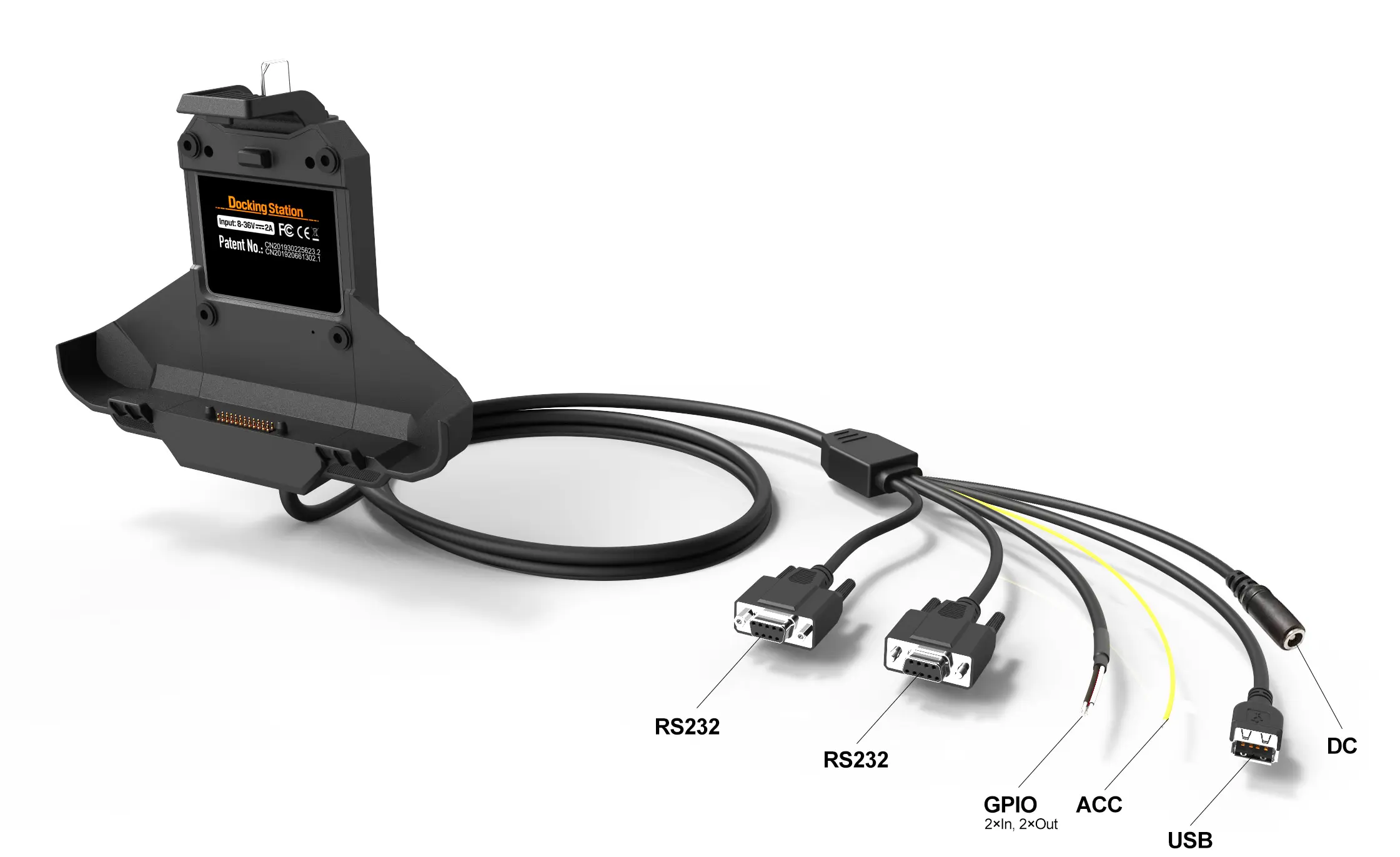

Docking Station

Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support customized functional interfaces such as: RS232, USB, ACC etc. The newly added button can switch the function of USB TYPE-C and USB TYPE-A.

Specification

System
CPU	Octa-core A53 2.0GHz+1.5GHz
GPU	GE8320
Operating System	Android 11.0 (GMS)
RAM	LPDDR4 4GB
Storage	64GB
Storage Expansion	Micro SD, Support up to 512 GB
Communication
Bluetooth	Integrated Bluetooth 5.0（BR/EDR+BLE）
WLAN	802.11a/b/g/n/ac; 2.4GHz&5GHz
Mobile Broadband (North America Version)	GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ WCDMA: B1/B2/B4/B5/B8 LTE FDD: B2/B4/B7/B12/B17
Mobile Broadband (EU Version)	GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ WCDMA: B1/B2/B4/B5/B8 LTE FDD: B1/B2/B3/B7/20/B28 LTE TDD: B38/B39/B40/B41 LTE TDD: B38/B39/B40/B41
GNSS	GPS, GLONASS, BeiDou
NFC	Supports Type A, B, FeliCa, ISO15693
Functional Module
LCD	7 Inch Digital IPS Panel, 1280 x 800, 800 nits
Touchscreen	Multi-point Capacitive Touch Screen
Camera (Optional)	Front: 5.0 megapixel camera
Camera (Optional)	Rear: 16.0 megapixel camera
Sound	Integrated microphone
Sound	Integrated speaker 2W
Interfaces (On Tablet)	Type-C, SIM Socket, Micro SD Slot, Ear Jack, Docking Connector
Sensors	Acceleration, Gyro sensor, Compass, ambient light sensor
Physical Characteristics
Power	DC 8-36V, 3.7V, 5000mAh battery
Physical Dimensions (WxHxD)	207.4×137.4×30.1mm
Weight	815g
Environment
Gravity Drop Resistance Test	1.5m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Interface (Docking Station)
USB2.0 (Type-A)	x1
RS232	x2(Standard) x1(Canbus Version)
ACC	x1
Power	x1 (DC 8-36V)
GPIO	Input x2 Output x2
CANBUS	Optional
RJ45 (10/100)	Optional
RS485	Optional
RS422	Optional
