Rugged Design Intelligent Vehicle Terminal Telematics
It is a new upgraded vehicle telematics terminal powered by Android 12 or Linux Yocto operating system. Adopted with Quad-core ARM Cortex-A53 64-bit processor, its main frequency can be up to 2.0G. Integrated with rich interfaces, various vehicle protocols and built-in functions such as 4G, BT, WiFi, GNSS, etc., it can realize vehicle telematics and high-precision real-time positioning and tracking. With its rugged and reliable appearance structure, it provides reliable vehicle data in some harsh and challenging environments. It can be applied to a variety of application scenarios: real-time monitoring of heavy trucks, networking of logistics vehicles, taxi management, agricultural automation, mining and so on.

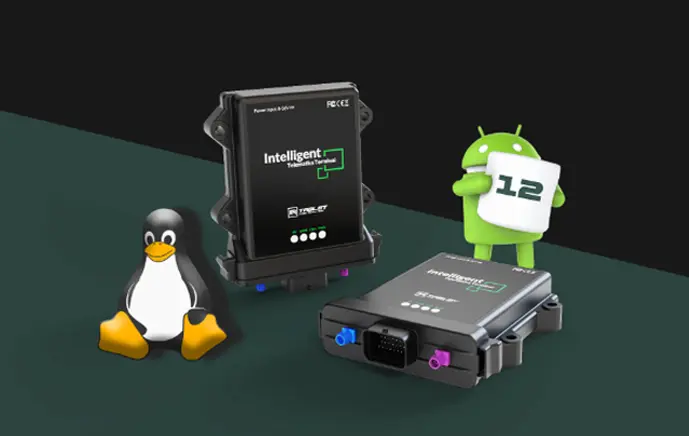

Powered by new Android 12 or Linux Yocto system. With richer functions and superior performance.
Satellite communication function can realize information communication and position tracking on a global scale.

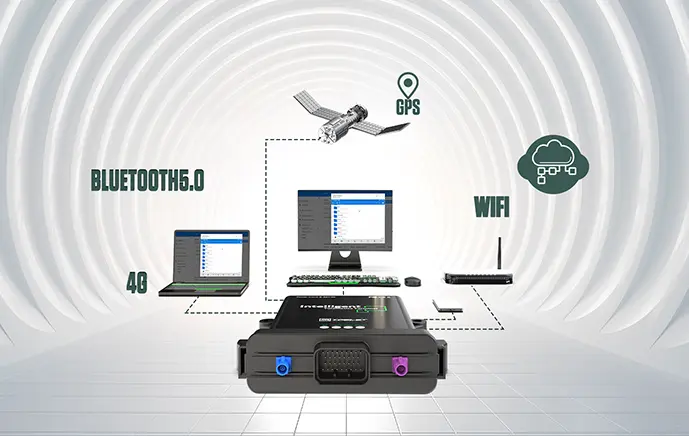

Built-in Wi-Fi/BT/GNSS/4G functions. Easily track and manage the equipment status. Improve the efficiency of fleet management.

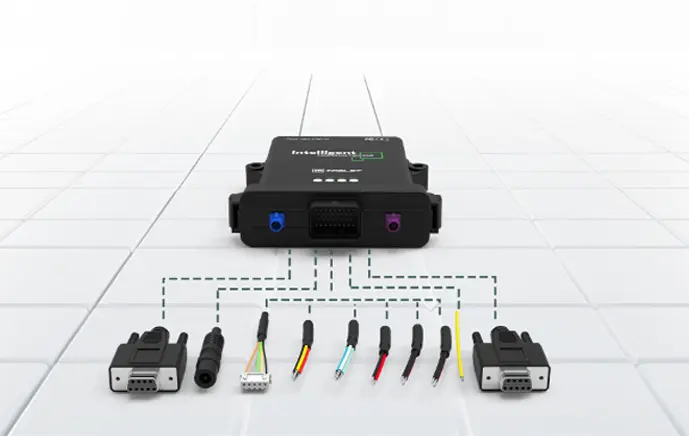

With rich peripheral interfaces such as RS232,RS485, dual-channel CANBUS, Analog Input, 1-wire, PWM, ACC and GPIO. It can be integrated with vehicles faster and shorten the project development cycle.

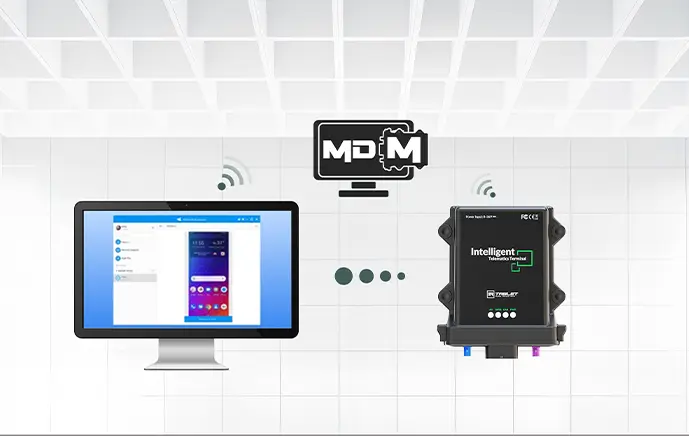

Integrated with MDM software. Easy to control the equipment status in real time.

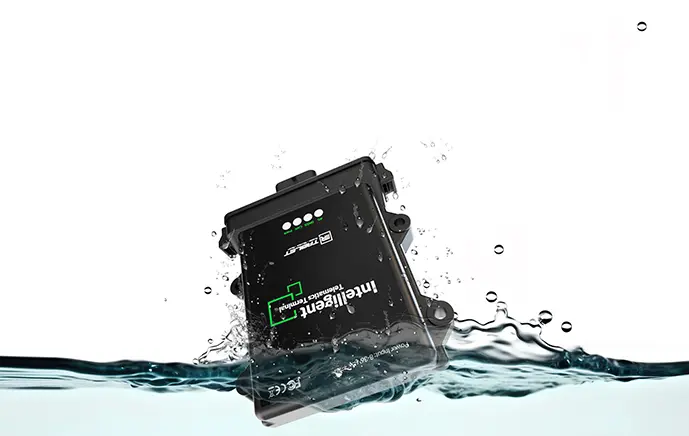

Unique anti-disassembly design ensures the safety of users' assets. Rugged shell ensures the use in various harsh environments.
Comply with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC6-36V wide voltage power supply.
Experienced R&D team with effective technical support. Support system customization and user applications development.
Specification
| CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
| OS | Android 12 or Linux Yocto |
| GPU | Adreno™ 702 |
| RAM | LPDDR4 3GB (default)/4GB (optional) |
| ROM | eMMC 32GB (default)/64GB (optional) |
| GNSS | NA version: GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS |
| NavIC, LI + L5, External Antenna | |
| EM version: GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS | |
| LI, External Antenna | |
| US Version North America | LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD: B41; External Antenna |
| EU Version EMEA/Korea/ South Africa | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTETDD:B38/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: 850/900/1800/1900 MHz; External Antenna |
| WIFI | 802.11a/b/g/n/ac; 2.4GHz&5GH乙 Internal Antenna |
| BT | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE, Internal Antenna |
| Satellite | Iridium (Optional) |
| Sensor | Acceleration, Compass, Gyro sensor |
| Type -C | TYPE-C 2.0 |
| MicroSD Slot | 1 x Micro SD card, Support up to 1TB |
| SIM Socket | 1 x Nano SIM Card slot |
| Power | DC 6-36V |
| Battery | 3.7V, 2000mAh battery |
| Drop test | 1.2m drop-resistance |
| IP Rating | IP67/IP69K |
| Vibration Test | MIL-STD-810G |
| Operating Temperature | Working: -30°C-70°C Charging: -20°C-60°C |
| Storage Temperature | -35°C ~ 75°C |
| Extended Interface | |
| RS232 | × 2 |
| RS485 | × 1 |
| CANBUS | × 2 |
| Analog Input | × 1; 0-16V, 0.1V precision |
| Analog Input (4-20mA) | × 2; 1mA precision |
| GPIO | × 8 |
| 1-wire | × 1 |
| PWM | × 1 |
| ACC | × 1 |
| Power | × 1 (DC 6-36V) |
