VT-7

Vehicle Android Rugged Reliable Design Tablet with Docking Station

Qualcomm Quad-Core, Cortex A7, 1.1GHz Processor, With GPIO, ACC, USB, DC, J1939, OBD-II interfaces. Ready and ideal for fleet management and telematics solutions.

Number VT-7

Feature Specification Accessories

The VT-7 is a rugged and reliable 7 inch Android tablet. Designed to operate in a harsh commercial automotive environment, including a wide range of temperatures, vibrations and shocks.With integrated GPS, cellular communication, built-in cameras, and with support for abundant vehicle and peripheral interfaces, it is suitable for various in-vehicle fleet management applications, especially for ELD truck, Taxi Dispatch, Farm Precision, Intelligent Bus Transportation and Special Vehicles.

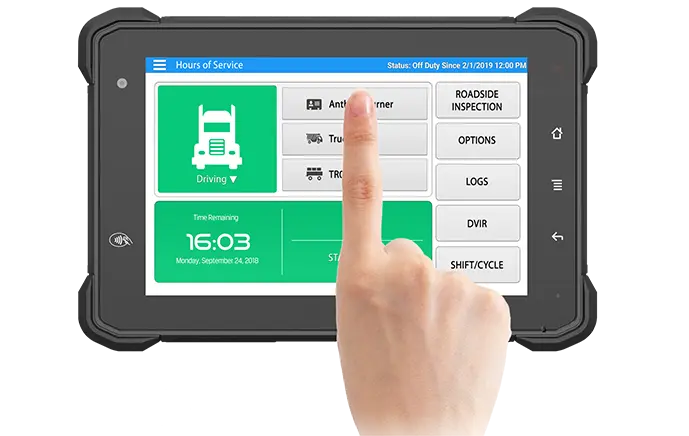

ELD Made Easy

With SAE J1939/OBD-II interfaces, recording data automatically compliant with multiple HOS rules. (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

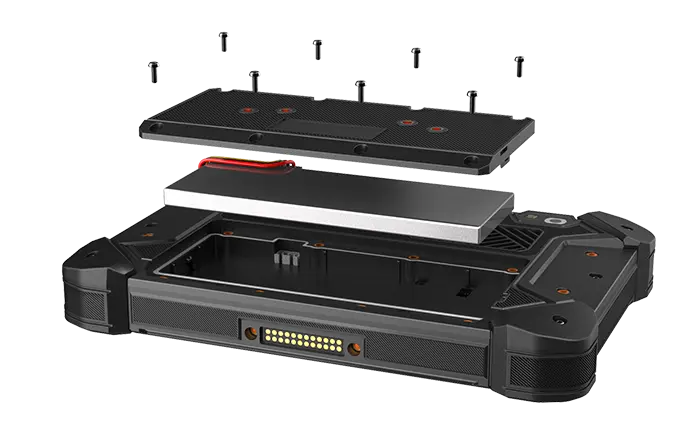

Replaceable Battery

Built-in Li-polymer battery makes the tablet convenient for portable use. 5000mAh of battery capacity supports the tablet work for 5 hours in operation mode typically. Easily to replace a new battery by maintenance personnel.

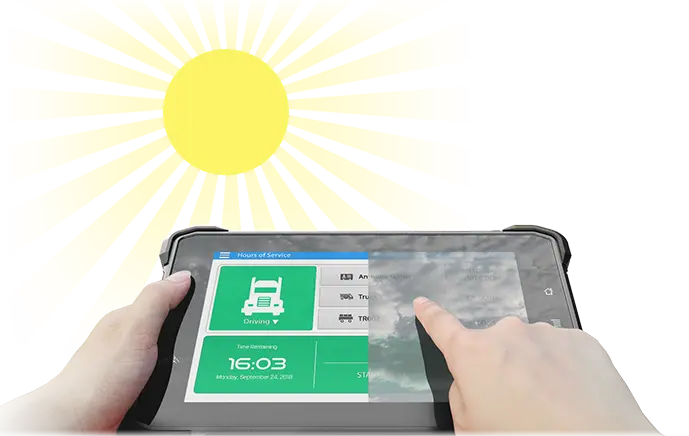

Sunlight Readable Screen

800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle. 10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

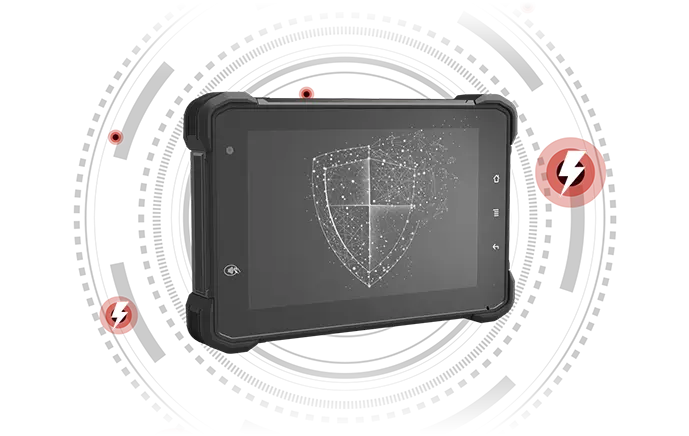

All-round Ruggedness

TPU material corner drop protection provides all-round protection for tablet. Compliance with IP66 rating dust-proof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.

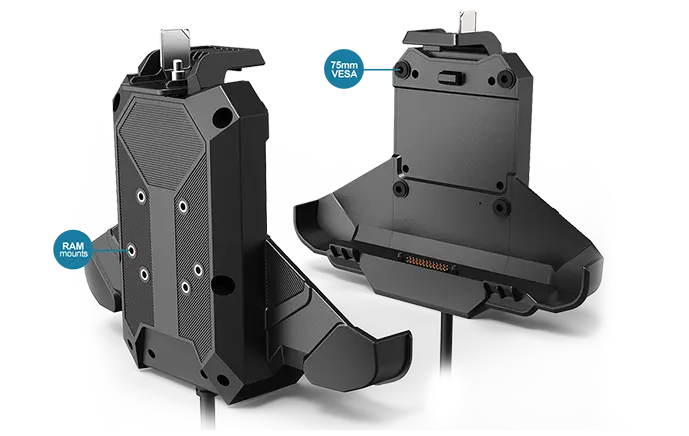

Docking Station

Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support SAEJ1939 or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application. Support rich extended interfaces according to customer’s requirements, such as RS422, RS485 and LAN port etc.

Real-time Precision Tracking

Dual-satellite system running GPS/GLONASS/BEIDOU. Integrated 4G LTE for providing round-the-clock connectivity.

Specification

System
CPU	Qualcomm Cortex-A7 Quad-core processor, 1.1GHz
GPU	Adreno 304
Operating System	Android 7.1.2
RAM	2 GB LPDDR3
Storage	16 GB eMMC
Storage Expansion	Micro SD 128 GB
Communication
Bluetooth	4.2 BLE
WLAN	IEEE 802.11a/b/g/n; 2.4GHz/5GHz
Mobile Broadband (North America Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz
Mobile Broadband (EU Version)	LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz
GNSS	GPS/GLONASS/BEIDOU
NFC(Optional)	Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s, MIFARE 1K,4K,NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode(from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s
Functional module
LCD	7″ HD (1280 x 800), sunlight readable 800 nits
Touchscreen	Multi-point Capacitive Touch Screen
Camera (Optional)	Front: 2 MP
	Rear: 8 MP with LED light
Sound	Build-in speaker 2W, 85dB
	Internal Microphones
Interfaces(On Tablet)	Type -C, Docking connector, Ear Jack
Sensors	Acceleration sensors, Ambient light sensor, Gyroscope, Compass
Physical Characteristics
Power	DC 8-36V(ISO 7637-II compliant)
Physical Dimensions (WxHxD)	207.4×137.4×30.1mm
Weight	810g
Environment
Gravity Drop Resistance Test	1.5m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F-149°F) 0°C ~ 55°C (32°F-131°F)(charging)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Interface(Docking Station)
USB2.0 (Type-A)	x 1
RS232	x 2
ACC	x 1
Power	x 1
GPIO	Input x 2 Output x2
CAN Bus 2.0, J1939, OBD-II	Optional (1 of 3)
RS485	Optional
RS422	Optional

This Product is Under Protection of Patent Policy
Tablet Design Patent No: 201930120272.9, Bracket Design Patent No: 201930225623.2, Bracket Utility Patent No: 201920661302.1
