Lens angle:horizontal: 150 ° diagonal: 190 ° vertical: 100°
IP67 Waterproof
DC power: 12V
Working temperature: -20ºC ~ +60ºC
Lightweight in appearance, large Angle of 190°
Coaxial HD output, the starlight level night vision HD effect
Reaches,0.01Lux@(F1.2,AGC ON), 0LUX with IR
Digital wide dynamic, 3D-DNR noise reduction

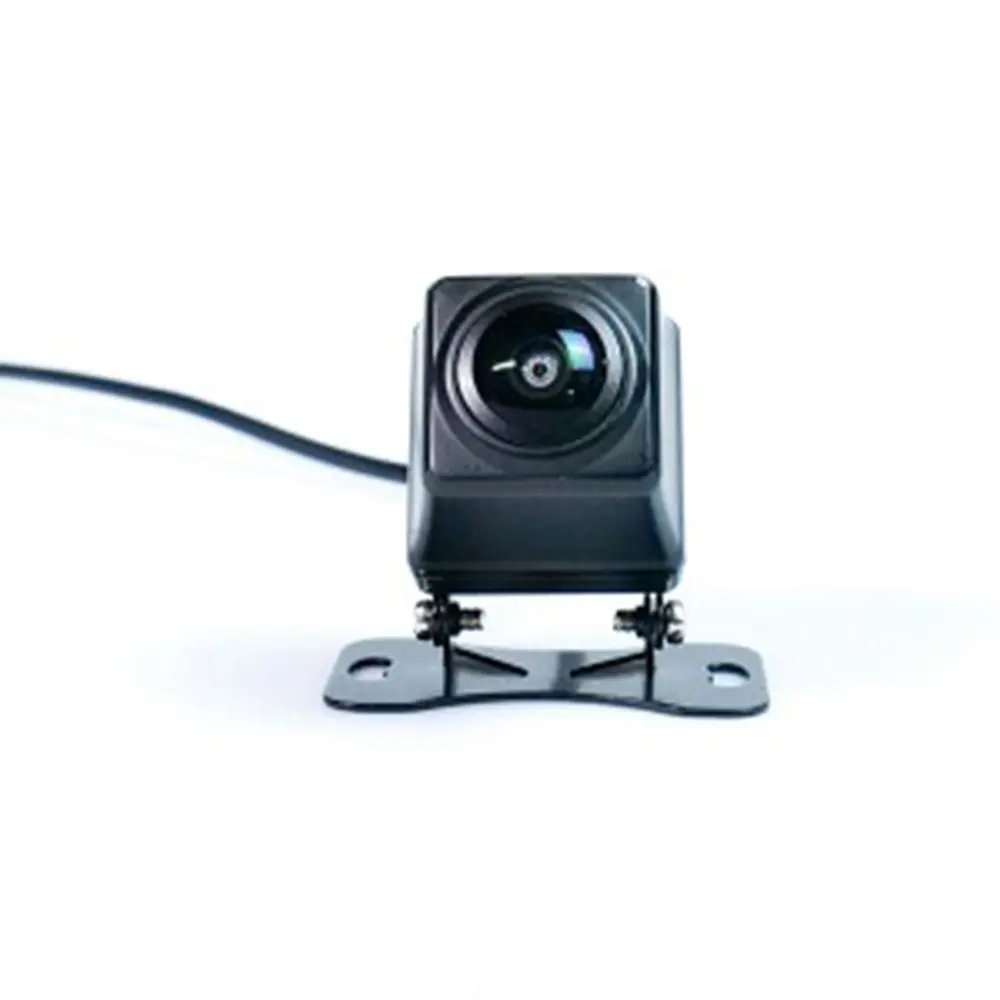

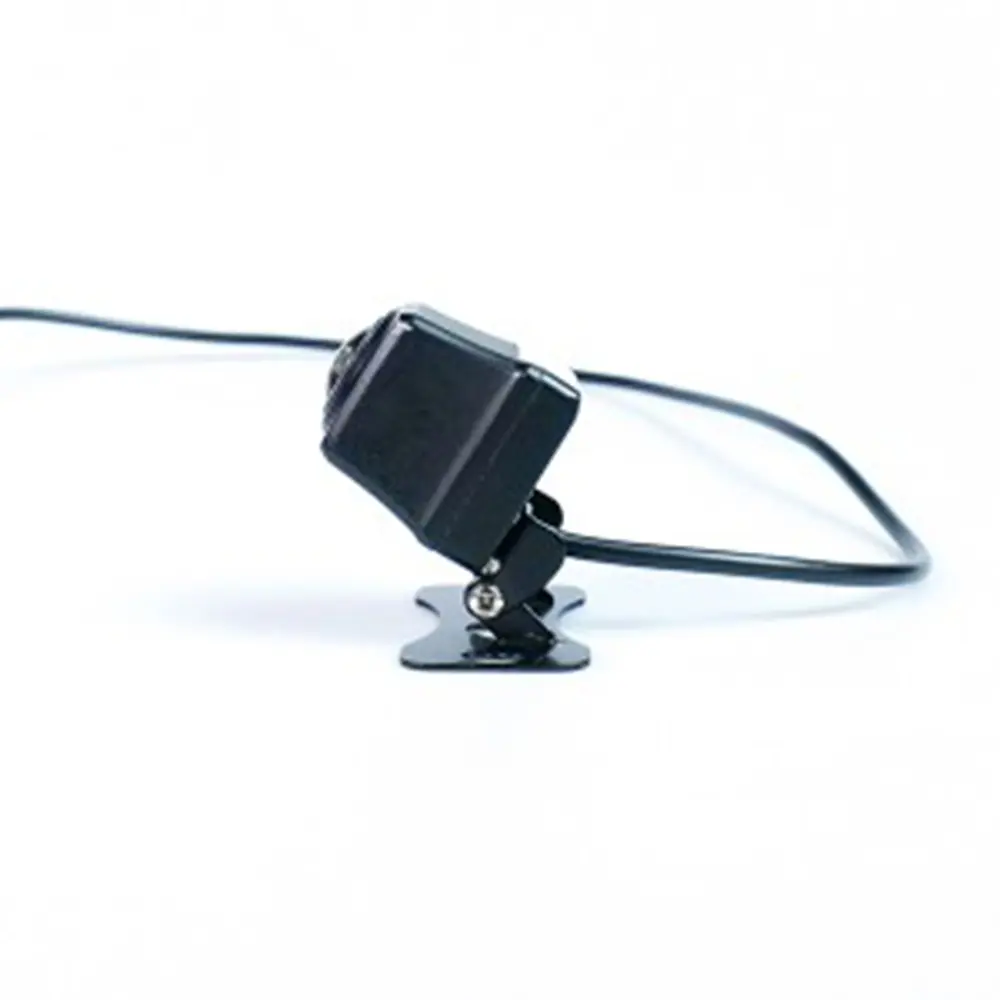

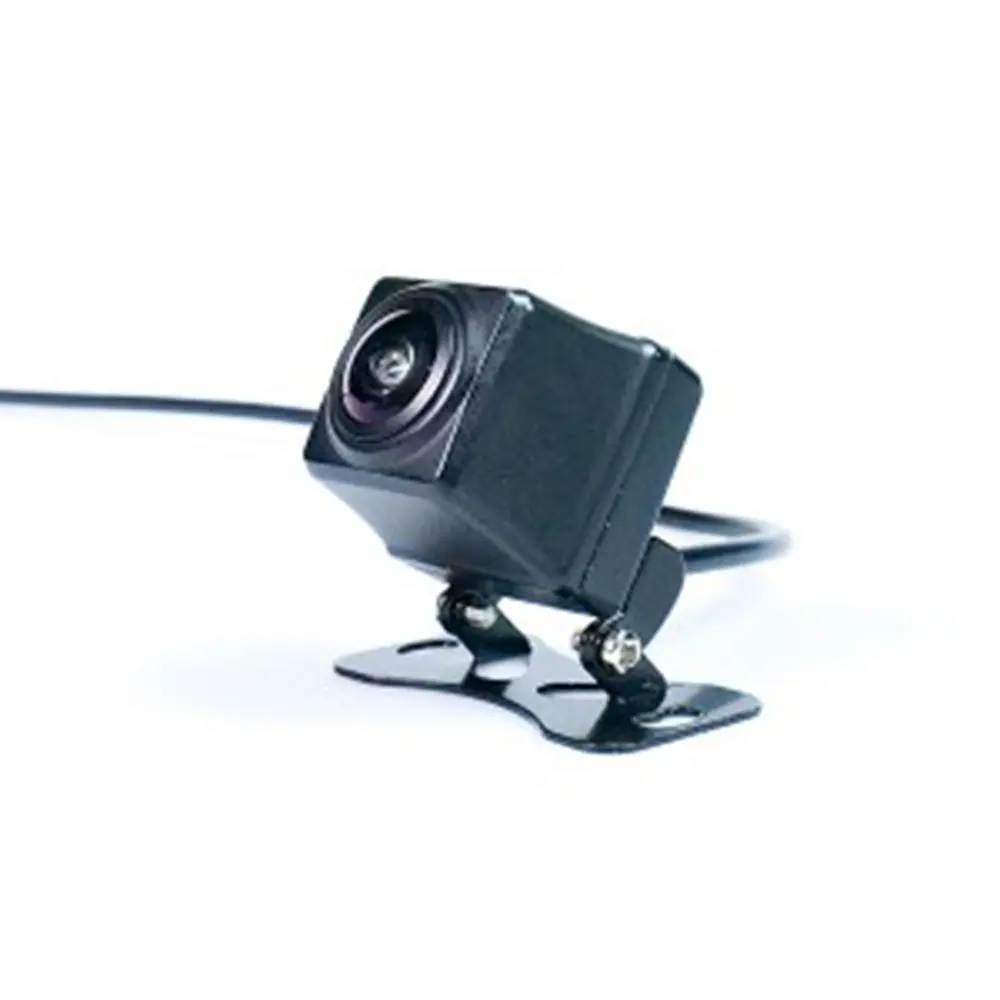

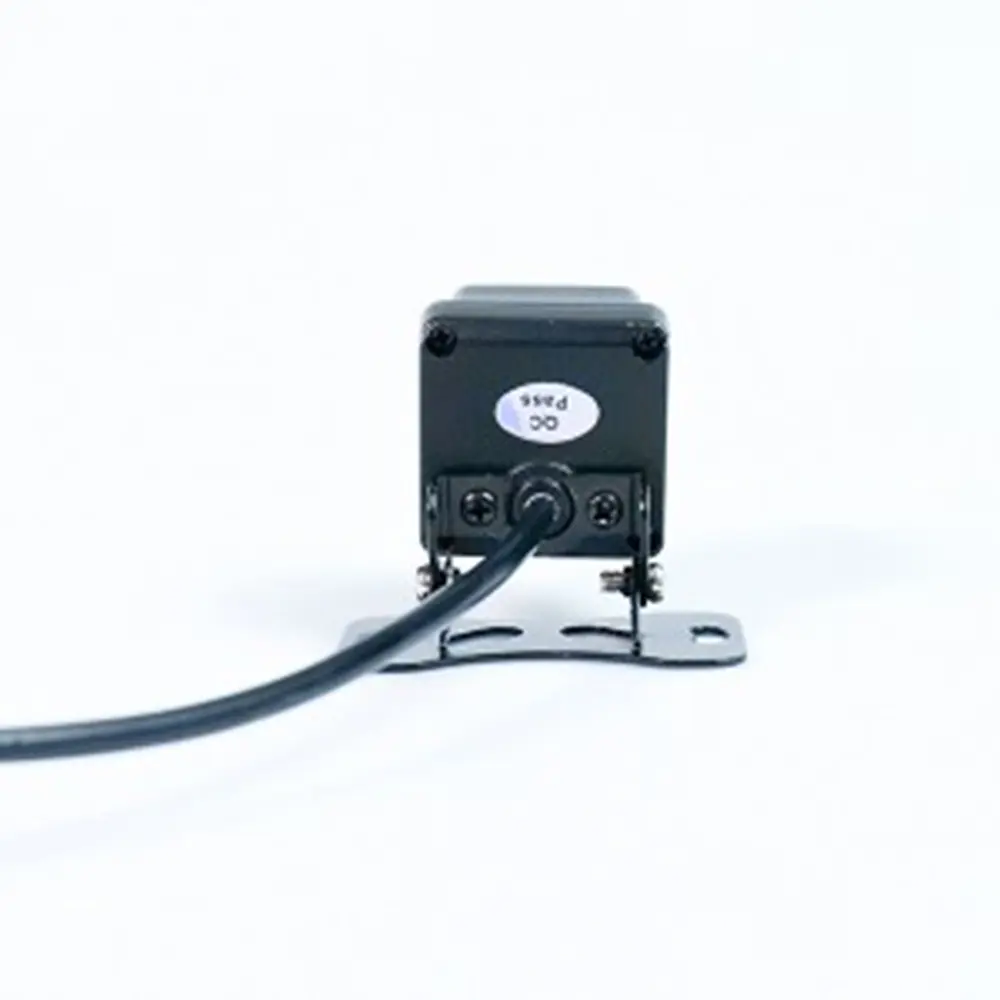

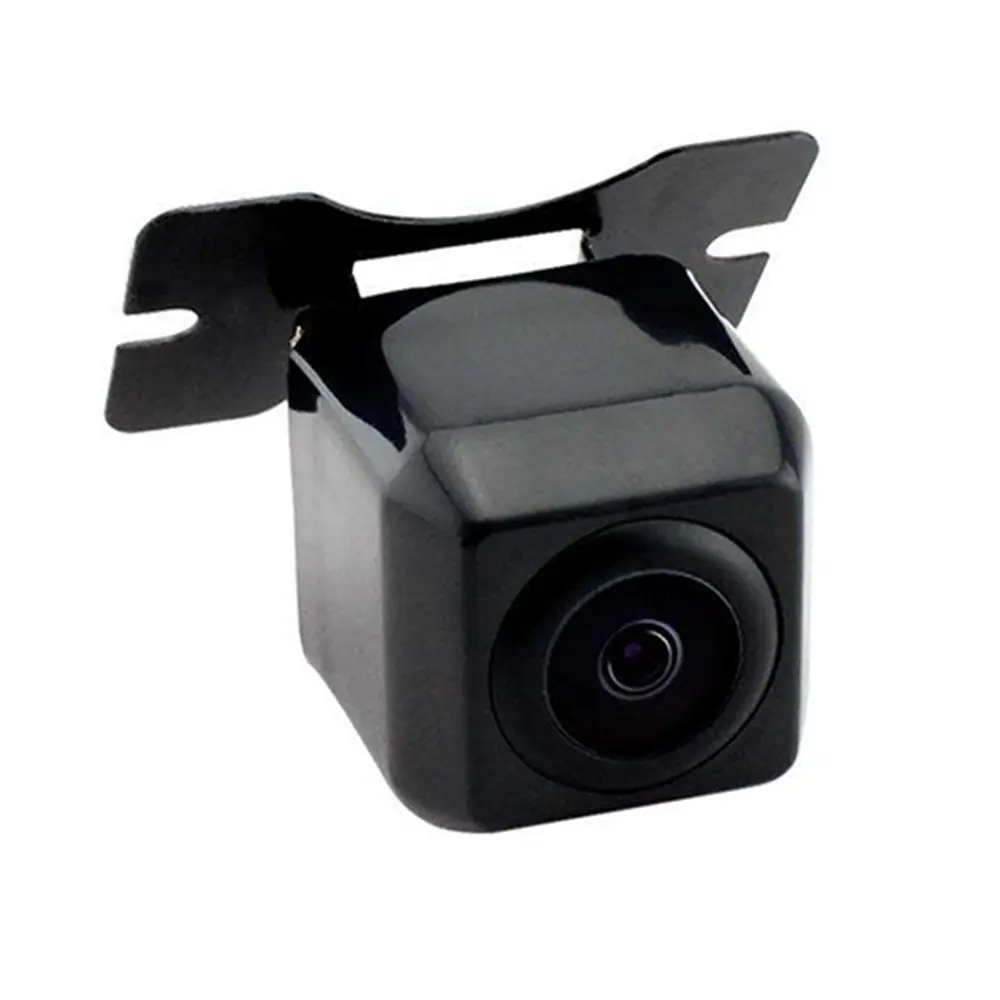

3Rtablet 720P Waterproof Mini Backup Camera is good for use when reversing which can help the driver see the rear view of the vehicle. The backup camera is IP Rating IP67-IP68 waterproof and has Anti-vibration
Specification
|
Model |
AHD - 720Mini |
|
Spec |
720P HD Camera |
|
Details |
|
|
Sensor |
1/4＂2053 |
|
System |
PAL/NTSC |
|
Effective Pixel |
1280(H)x720(V) |
|
Illumination |
0.01Lux@(F1.2,AGC ON)，0LUX with IR |
|
Lens |
Support 1.44MM,1.7MM,2.1MM |
|
Shutter |
Auto |
|
D/N |
Color |
|
Synchronously |
Internal |
|
FPS |
720P@25fps / 720P@30fps |
|
IP Rating |
IP67-IP68 |
|
Video Output |
Default AHD (TVI/CVI/CVBS customized) |
|
Control (Customized) |
|
|
Exposure |
Brightness / Exposure mode / Gain |
|
D/N |
COLOR/B/W |
|
Video Setting |
Contrast/Sharpness/Color/Gain/DNR/PAL&NTSC/ DWDR |
|
Language |
ENG/CHN1/ESPANOL/FRA/CHN/JAP/ITALIANO/ EAAHNIKA/POLSKI/Portugal/Korean |
|
Interface Method Type |
Aviation connector |
|
General |
|
|
Operation Temperature |
-20℃ to 60℃ |
|
Working Humidity |
Relative humidity less than 90 % |
|
Power |
DC:12V |
|
Size |
Length*width*height（21.8*21.8*28mm） |
