VT-7A PRO AHD

7-Inch Rugged Vehicle Mounted Tablet for Forklift Safety

The ST-7 is a high-performance 7-inch rugged tablet designed for harsh industrial environments and vehicle-mounted scenarios. Running on Android 13 OS, It delivers exceptional value in driver assistance systems.

  • Number ST-7
Feature Specification Accessories

homepage-vehicle-tablet

VT-7A PRO AHD is a 7-inch rugged tablet with rich functions. The tablet runs on Android 13 system and is equipped with a Qualcomm 64-bit octa-core processor (max frequency 2.0GHz). Built-in communication modules such as GPS, 4G, WiFi, Bluetooth, NFC, which are well-suited for various loT (Internet of Things) applications. It also boasts a variety of interfaces such as AHD Inputs, RS232, GPIO, USB, ACC, facilitating seamless integration with more external devices. Its rugged and waterproof design ensures reliable performance in various harsh outdoor environments.

ST7

Application Scenarios

Fleet Management & Logistics: ELD compliance, real-time routing, and vehicle diagnostic monitoring.

Construction & Mining: Heavy machinery dispatching, site mapping, and rugged data collection.

Precision Agriculture: Tractor auto-steering, pesticide spraying control, and yield monitoring.

Public Safety: Fire/Police vehicle dispatch, incident reporting, and mobile evidence collection.

Warehousing: Forklift-mounted inventory management and barcode scanning integration.

Waste Management: Route optimization and bin collection tracking.

Vehicle Tablet_1

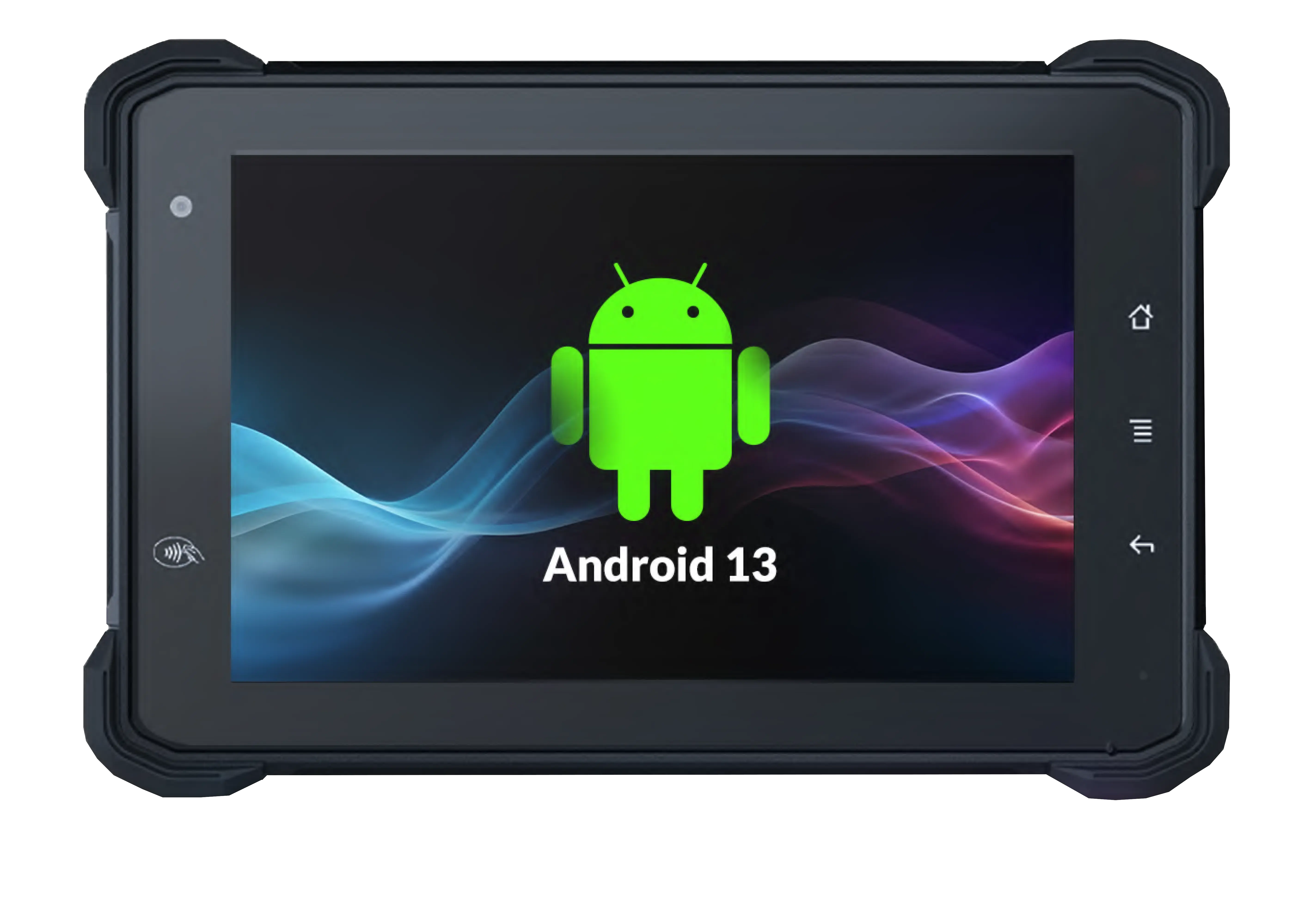

Android 13 OS

Powered by Android 13, it ensures consistent, stable, and reliable performance with seamless and efficient operation of applications.

Unrivaled Outdoor Visibility

Unrivaled Outdoor Visibility

The 1000-nits ultra-bright display ensures the screen remains perfectly clear even under direct, harsh summer sunlight.

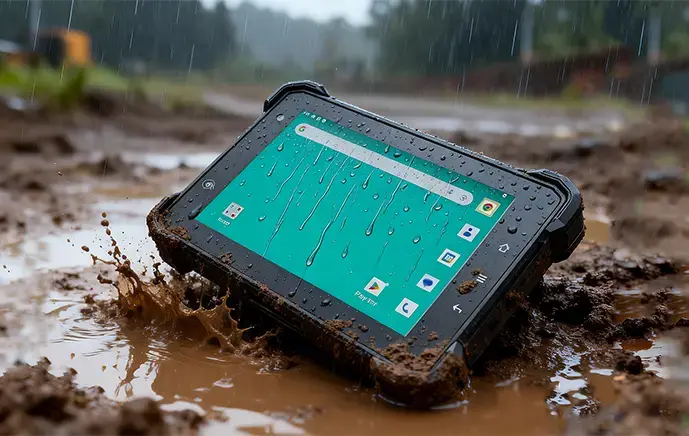

Rugged Industrial Reliability Design

Rugged Industrial Reliability Design

Compliant with IP67 and MIL-STD-810G standards, it offers protection against dust, water, shock, and vibration. Built to withstand drops from up to 1.2 meters and heavy vibrations, it helps reduce device replacement costs.

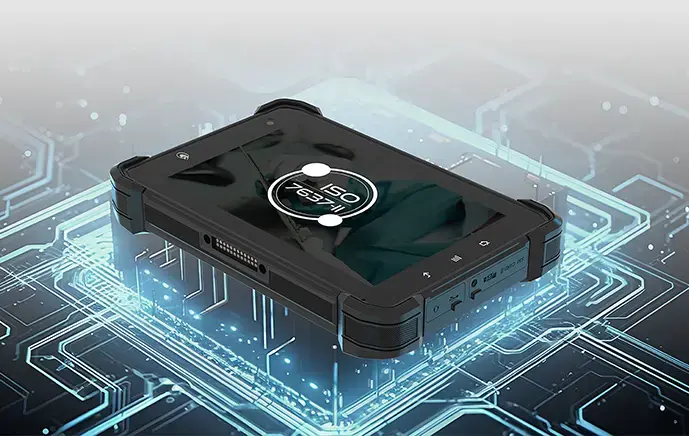

ISO 7637-II

ISO 7637-II

Compliant with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.

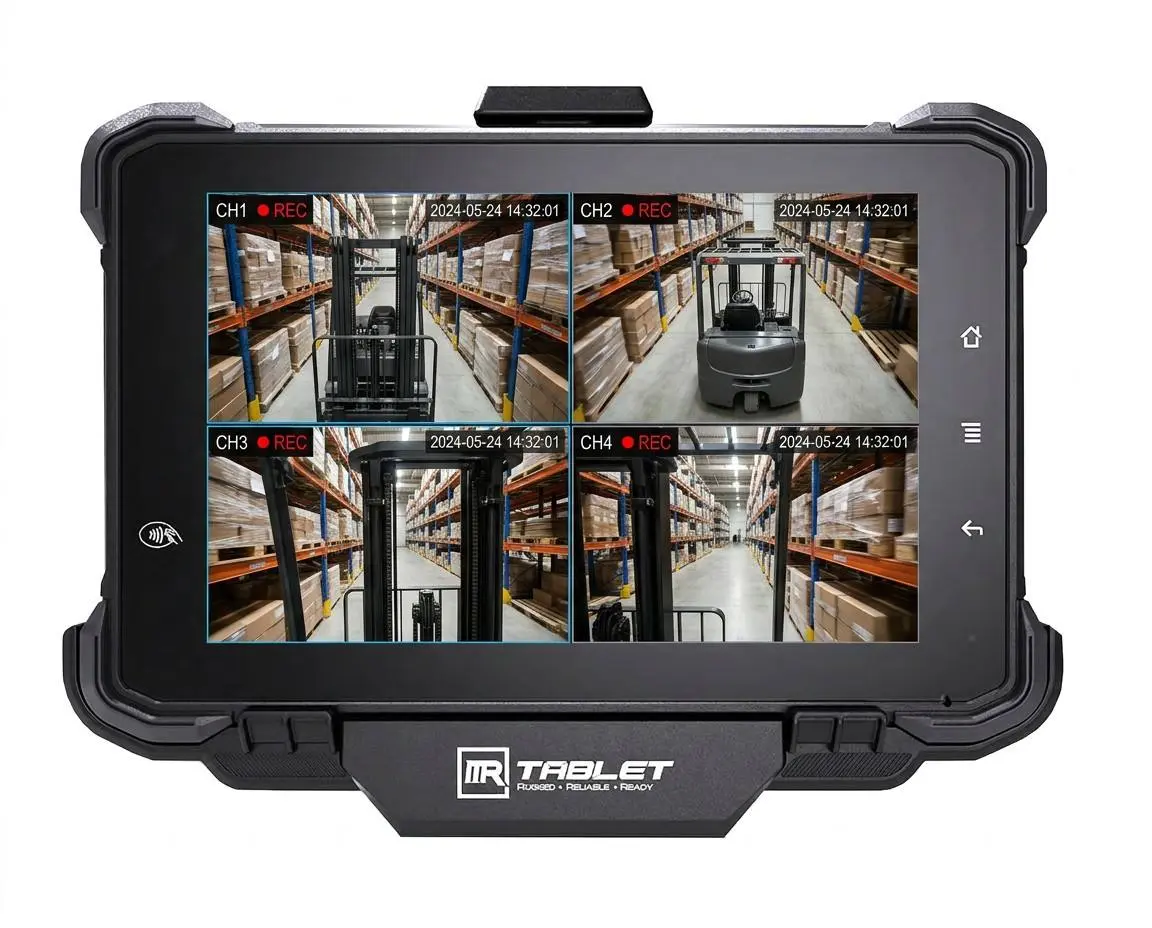

4 Channel AHD Camera Tablet

4 Channel AHD Camera Tablet

Unique 4-channel AHD camera input for 360° blind spot monitoring, it can collect and transmit images of the surrounding environment of vehicles in real time.

High-Performance Connectivity

High-Performance Connectivity

Powered by a Qualcomm octa-core processor with a built-in LTE Cat 4 communication module, High-precision GPS, GLONASS, BDS and Galileo, and Wi-Fi for real-time data transmission.

Specification

System

CPU

Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53,1.8GHz

GPU

Adreno 610

Operating System

Android 13

RAM

LPDDR4 4GB (default)/8GB (optional)

Storage

eMMC 64G (default)/128GB (optional)

LCD

7 Inch Digital IPS Panel, 1280×800, 1000 nits

Screen

Multi-point Capacitive Touch Screen

Audio

Integrated microphone; Integrated speaker 2W

Camera

Rear: 16.0 megapixel camera (optional, can not be

used simultaneously with AHD)

Sensor

Acceleration, Gyro sensor, Compass, Ambient Light Sensor

Interface (On Tablet)

USB

Type-C 3.0, 5V Input (can not be used together with

USB Type-A)

Micro SD Slot

Micro SD card×1, Support up to 1T

SIM Socket

Micro SIM Card slot×1

Ear jack

3.5mm headphone jack compliant with

CTIA standard

Docking connector

POGO PIN×24

Physical Characteristics

Power

USB Type-C/ Pogo pin 5V power input

Battery

3.7V, 5000mAh battery

Physical Dimensions

207.4×137.4×30.1mm (W×H×D)

Weight

810g

IP rating

IP67 (IEC 60529)

Vibration test

MIL-STD-810G

Work temperature

-10°C ~ 65°C (14°F ~ 149°F)

Storage temperature

-20°C ~ 70°C (-4°F ~ 158°F)

Communication

GNSS

GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna;

External SMA antenna(optional)

2G/3G/4G (NA Version)

· LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71

· LTE-TDD: B41, Internal Antenna;External SMA antenna(optional)

2G/3G/4G (EM Version)

· LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28

· LTE TDD: B38/B39/B40/B41

· WCDMA: B1/B2/B4/B5/B8

· GSM: 850/900/1800/1900MHz

 Internal Antenna (default), External SMA antenna (optional)

WIFI

802.11a/b/g/n/ac; 2.4GHz&5GHz;Internal Antenna (default);

external SMA antenna(optional)

Bluetooth

2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE;Internal Antenna (default);

External SMA antenna (optional)

NFC (Optional)

· ISO/IEC 14443A, ISO/IEC 14443B PICC mode

· ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed

  according to NFC Forum

· digital protocol T4T platform and ISO-DEP FeliCa PCD mode

· MIFARE PCD encryption mechanism (MIFARE 1K/4K)

· NFC Forum tags T1T, T2T, T3T, T4T and T5T

  NFCIP-1,NFCIP-2 protocol

· NFC Forum certification for P2P, reader and card mode

· FeliCa PICC mode

· ISO/IEC 15693/ICODE VCD mode

· NFC Forum-compliant embedded T4T for NDEF short record

Extended Interface (Docking Station)

Serial Port

RS232_1×1 (DEBUG, ttyHSL0),

　

RS232_2×1 (UARTO,ttyHSL2)

AHD

×4, Support AHD Input of 1920×1080 and 1280×720, PAL and NTSC

USB TYPE-A

USB 2.0×1 (can not be used together with USB Type-C)

GPIO

GPI×4, high level trigger; GPO×2, open drain output

ACC

×1 (0-36V)

Power

×1 (8-36V)

Power Output

×1 (8-36V output voltage)

CANBUS

×1 (UART3, ttyHSK1)

RJ45

×1 (10/100, optional)
