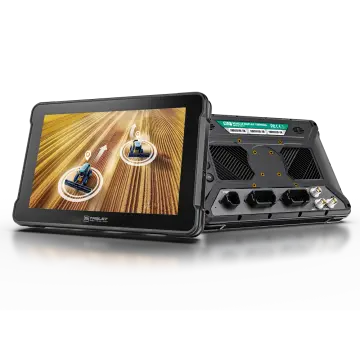

AT‑10A PRO

AT‑10A PRO 10 Inch Rugged Vehicle Tablet Android 13 with 10F Super Capacitor

Number AT‑10A PRO

Feature Specification Accessories

a2a13f1289dfe0689f6f31486e67b357

AT-10A PRO is a 10-inch industrial-grade rugged onboard tablet built on stable Android 13 system, designed for commercial vehicle fleets and precision-agriculture machinery terminals. Equipped with a 1200 nits ultra-high-brightness sunlight-readable display, it delivers clear visuals under strong outdoor sunlight. The built-in 10F super capacitor automatically saves critical mission data upon sudden power loss, avoiding data loss caused by vehicle power-supply interruption. Compliant with IP67 ingress-protection rating and ISO 7637-II vehicle transient-voltage standard, it can sustain 174V /300 ms surge pulse and supports DC 8-36 V wide-voltage vehicle power input. Multi-constellation GNSS positioning, CANBus, RS232, RJ45, AHD, GPIO, ACC and USB industrial interfaces are available for configuration. Native support for mainstream MDM platforms enables remote device monitoring and app over-the-air updates. It is widely deployed for fleet management, taxi dispatch, sanitation trucks, tractors and agricultural autopilot systems. We provide full-set OEM & ODM firmware and hardware customization for global system integrators.

Latest Android 13 operating system

stable performance, smooth running of fleet and agricultural application software

1200 nits ultra‑bright IPS screen

Equipped with a 10-inch 1200 nits high-brightness display, the tablet delivers clear and readable in direct strong outdoor sunlight

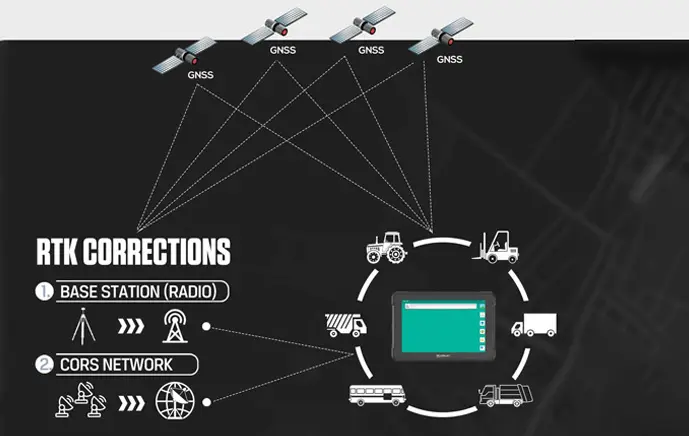

Built-in RTK Module (Optional)

The built-in RTK supports real-time GNSS corrections, delivering positioning accuracy of up to ±2.5 cm. It is ideal for precision agriculture, mining, and other applications, helping improve operational accuracy and efficiency.

Built‑in 10F super‑capacitor

Equipped with a built-in 10F supercapacitor, auto‑save important data during sudden vehicle power‑off

IP67 waterproof & dustproof

With an IP67 rating, the tablet is protected against dust, high-pressure water jets, and temporary immersion in up to 1 meter of water, ensuring reliable operation in harsh environments.

Multi‑satellite GNSS

GPS / GLONASS / BDS / Galileo satellite positioning systems, multiple‑accuracy options for vehicle tracking & precision‑agriculture positioning

ISO 7637‑II vehicle surge protection

Withstand 174V‑300ms transient pulse, DC 8‑36 V wide‑voltage input fits most vehicle power systems

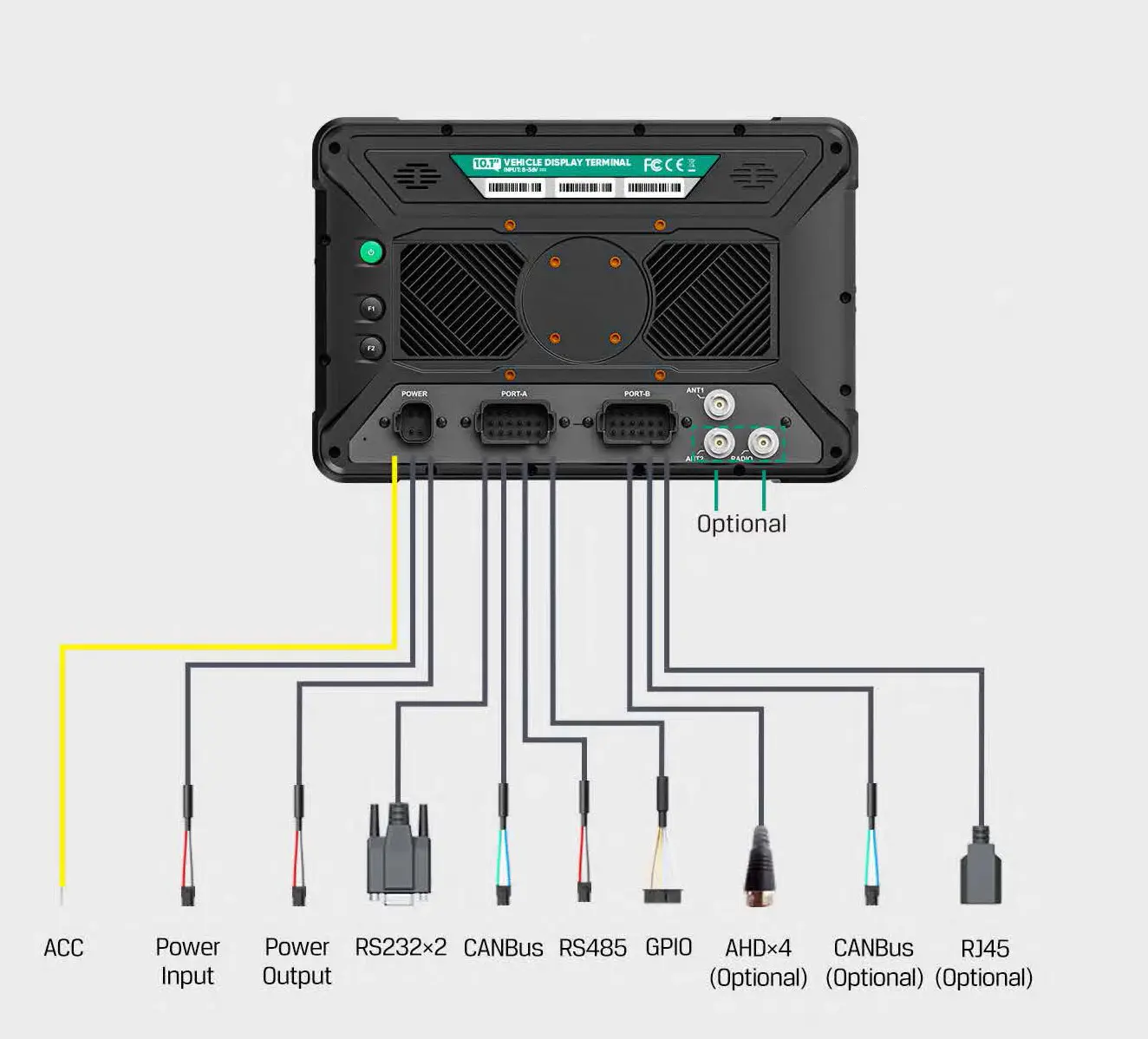

Rich configurable industrial interfaces

CANBus, RS232, RS485, USB, AHD, RJ45, GPIO, Powre Output, ACC ignition signal for vehicle‑system integration

Applications

● Precision Agriculture Machinery: On-board display & positioning terminal for tractors, autopilot farm equipment

● Commercial Fleet Management:On-board terminal for truck, sanitation-truck real-time tracking & data collection

● Taxi & Ride-Hailing Dispatch: Order-receiving terminal with super-capacitor power-off data backup

● Construction & Special-Purpose Vehicles: Rugged onboard terminal for engineering machinery monitoring

● Logistics & Cold-Chain Fleets: Vehicle positioning, status recording and operation-data storage

● Complete OEM & ODM customization for interface configuration, firmware modification and logo silk‑screen printing

Specification

System
CPU	Qualcomm 64-bit Octa-core processor, up to 2.0 GHz
GPU	Adreno 610
Operating System	Android 13
RAM	LPDDR4 4GB (default)/8GB (optional)
Storage	eMMC 64GB (default)/128GB (optional)
Communication
Bluetooth	2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE
WLAN	802.11a/b/g/n/ac, 2.4GHz&5GHz
4G (US Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17
	/B25/B26/B66/B71
	LTE-TDD: B41
4G (EM Version)	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
	LTE TDD: B38/B39/B40/B41
	WCDMA: B1/B2/B4/B5/B8
	GSM: 850/900/1800/1900MHz
GNSS (Standard)	GPS/GLONASS/BDS/Galileo/QZSS
GNSS (Standard)	position accuracy: 2.5m
GNSS (Optional)	GPS/GLONASS/BDS/Galileo/QZSS/SBAS,
GNSS (Optional)	position accuracy: 1.5m CEP(with SBAS), 2.0m CEP(without SBAS)
NFC (Optional)	· ISO/IEC 14443A, ISO/IEC 14443B PICC mode
	· ISO/IEC 14443A, ISO/IEC 14443B PCD mode
	designed according to NFC Forum
	· Digital protocol T4T platform and ISO-DEP
	· FeliCa PCD mode
	· MIFARE PCD encryption mechanism (MIFARE 1K/4K)
	· NFC Forum tags T1T, T2T, T3T, T4T and T5T,
	NFCIP-1, NFCIP-2 protocol
	· NFC Forum certification for P2P, reader and card mode
	· FeliCa PICC mode
	· ISO/IEC 15693/ICODE VCD mode
	NFC Forum-compliant embedded T4T for NDEF short record
eSIM (Optional)	×1
Environmental Reliability
IP Rating	IP67 (IEC 60529)
Vibration Test	MIL-STD-810G
Operating Temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)

Physical Characteristics
Supercapacitor	10F
Power	DC8-36V (ISO 7637-II compliant)
Physical Dimensions	273×183×49mm (W×H×D)
Weight	1.6kg
High Precision Position (Optional)
Built-in Digital Radio Station	Support communication frequency 410-470Mhz
	Support protocols: TRIMTALK, TRIMMK3, TT450S,
	TRANSEOT, SOUTH, HUACE, SATEL
	Support communication rates: 9600bps,19200bps
	Max transmission distance: 3-5km (unobstructed area)
RTK Position Module (Domestic Version)	Single point position (RMS): 1.5m horizontally, 2.5m vertically
	DGPS (RMS): 0.4m horizontally, 0.8m vertically
	RTK (RMS): 0.8cm+1ppm horizontally, 2.5cm+1ppm vertically
	Data format: NMEA-0183
	Support input differential format RTCM3.X
Extended Interfaces
Power Cable	Power input×1 (DC 8-36V)
	ACC×1
	Power output×1 (The power input interface loops out the
	power supply, and the maximum output current is 2A.)
Port A Cable	RS232×2
	RS485×1
	CAN Bus×1
	GPIO×7
Port B Cable (Optional)	AHD input×4, support 720P/1080P resolution, PAL/NTSC
	CAN Bus×1
	RJ45 (10/100)×1
