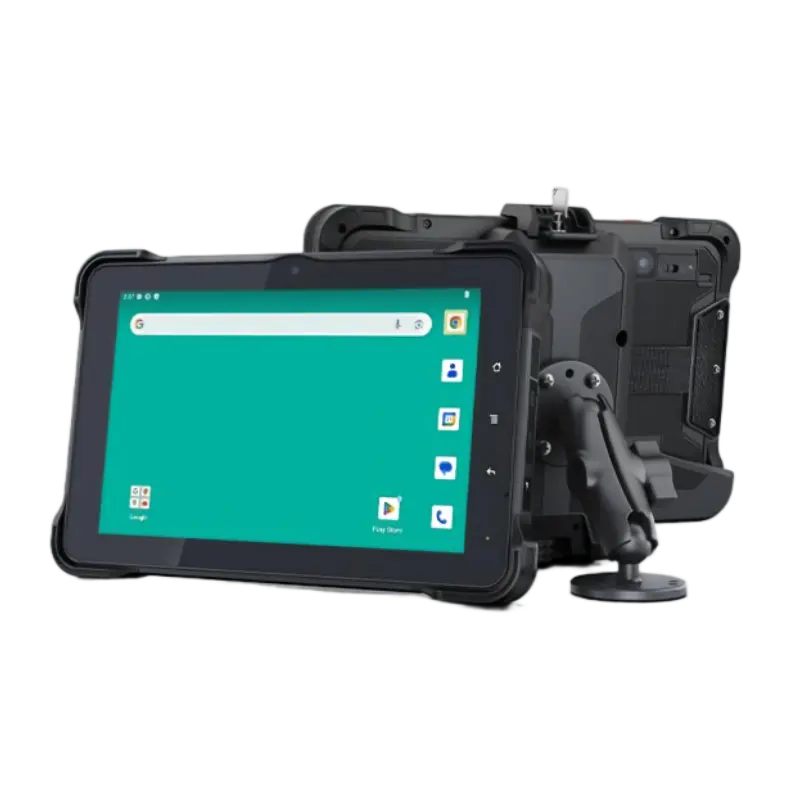

VT-10A PRO

VT-10A PRO 10.1" IP67 Rugged Vehicle Tablet Android 13 CANBus | 3RTablet

Number VT-10A PRO

Feature Specification Accessories

Overview

VT-10A PRO is our upgraded 10.1-inch large-screen rugged vehicle tablet powered by Qualcomm octa-core industrial processor and Android 13 GMS-certified system. Adopting IP67 full rugged enclosure, it perfectly adapts to mining, construction, agricultural machinery and long-distance truck harsh working environments. Built-in CANBus, multi-channel AHD video input, 4G LTE, GNSS and RJ45 Ethernet, it realizes vehicle data collection, multi-channel driver monitoring, real-time positioning and remote cloud management. This large-size industrial tablet is the ideal hardware for heavy-duty vehicle fleet management, precision agriculture autopilot supporting terminals and mining equipment monitoring. We offer full OEM & ODM hardware and software customization for global system integrators.

Key Benefits

• Qualcomm octa-core high-speed processor, stable long-time industrial continuous operation

• 10.1-inch large high-brightness sunlight readable screen, convenient for industrial operation viewing

• Official Android 13 GMS certification, full access to global Google services and fleet software

• IP67 waterproof, dustproof and shockproof, pass vehicle anti-vibration reliability test

• Built-in CANBus + multi-channel AHD camera input for vehicle monitoring and data acquisition

• Rich industrial expansion interfaces: RJ45, 4G, GNSS, USB, serial ports for multi-scenario docking

• Complete OEM & ODM service for housing, firmware, APP pre-install and interface modification

Heavy-Duty Fleet Management: Long-distance trucks, logistics vehicles and sanitation truck supervision

Mining & Construction Vehicles: Excavators, mining trucks and concrete mixer onboard monitoring

Precision Agriculture Machinery: Supporting display terminal for farm tractor autopilot systems

Bus & Large Passenger Transport: Large-screen passenger information and driver monitoring terminal

Port & Engineering Special Vehicles: Shockproof industrial terminal for port vehicle data collection

Specification

Processor & System

CPU	Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz
GPU	Adreno TM 610
Operating System	Android 13
RAM	4GB RAM (default) / 8GB (optional)
Storage	64GB FLASH (default) / 128GB (optional)
Storage Expansion	Micro SD card, up to 1TB

Display & Touch

LCD	10.1 inch HD (1280×800), 1200cd/m², Sunlight readable
Touchscreen	Multi touch capacitive touchscreen
Camera (Optional)	Front: 5 MP
Camera (Optional)	Rear: 16 MP with LED light
Sound	Build-in speaker 2W, 85dB; Internal microphones
Interfaces	Type-C, Compliant with USB 3.0, (for data transfer;support OTG)
	Micro SD card×1, support up to 1TB
	SIM Card×1 (default); eSIM×1 (optional)
	Docking connector×1 (POGO-PIN×24)
	Headset jack×1
Sensor	Acceleration, Ambient Light, Compass, Gyroscope

Communication & Positioning

Bluetooth	2.1 EDR/3.0 HS/4.2 BLE/5.0 LE
WLAN	802.11a/b/g/n/ac;2.4GHz&5GHz
Mobile Broadband (NA Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
Mobile Broadband (NA Version)	LTE-TDD: B41; Internal Antenna; External SMA antenna (optional)
Mobile Broadband (EM Version)	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
	LTE TDD: B38/B39/B40/B41
	WCDMA: B1/B2/B4/B5/B8
	GSM: 850/900/1800/1900 MHz; Internal Antenna (default),
	External SMA antenna (optional)
NFC (Optional)	ISO/IEC 14443A, ISO/IEC 14443B PICC mode
	ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed according to NFC Forum
	digital protocol T4T platform and ISO-DEP
	FeliCa PCD mode
	MIFARE PCD encryption mechanism (MIFARE 1K/4K)
	NFC Forum tags T1T, T2T, T3T, T4T and T5T
	NFCIP-1, NFCIP-2 protocol
	NFC Forum certification for P2P, reader and card mode
	FeliCa PICC mode
	ISO/IEC 15693/ICODE VCD mode
	NFC Forum-compliant embedded T4T for NDEF short record
GNSS	GPS/GLONASS/BDS/Galileo/QZSS; Internal Antenna (default);
GNSS	External SMA antenna (optional)

Industrial Interfaces (Docking Station and All-in-one Cable)

Power	×1
Power Output	×1 (optional, occupy GPO_3)
ACC	×1
RS232	×2
USB2.0 (Type-A)	×1
Analog Input	×1 (optional)
RJ45 (10/100)	×1 (optional)
CANBUS	optional (CAN 2.0b×1 / CAN 2.0b×2)
RS485	×1 (optional)
GPIO (Positive Trigger Input)	GPI×3, GPO×3 (standard)
	GPI×3, GPO×2 (The power output occupies GPO_3.)
Video In	×1 (optional)
Audio Out	×1 (optional) (Only for all-in-one cable)

Protection & Environment

Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x (IEC 60529)
Water Resistance Test	IPx7 (IEC 60529)
Operating Temperature	-10° C ~ 65°C (14°F-149°F)
Operating Temperature	0° C ~ 55°C (32°F-131°F)(charging)
Storage Temperature	-20° C ~70° C (-4°F-158°F)

Power Supply

Power	DC8-36V (ISO 7637-II compliant)
	Battery: User replaceable Li-ion 8000 mAh
	Battery operating time: about 4.5hours (typical)
	Battery charging time: about 4.5hours
Physical Dimensions	277×185×31.6mm (W×H×D)
Weight	1450g
