VT-10 IMX 10.1 Inch Industrial Rugged Vehicle Tablet Linux

product details

Overview

VT-10 IMX is a 10.1-inch industrial-grade rugged vehicle tablet built on NXP i.MX 8M Mini Linux system, specially developed for long-term stable industrial and vehicle IoT applications. Different from Android consumer-oriented devices, this Linux industrial tablet focuses on ultra-stable operation, low power consumption, strong anti-interference ability and secondary development flexibility. With IP67 waterproof, dustproof and shockproof rugged enclosure, it can work stably in high vibration, dust, humid and extreme temperature vehicle environments. Equipped with standard CANBus, RJ45 Ethernet, 4G expansion, GNSS positioning and multi-channel peripheral interfaces, VT-10 IMX is widely used in precision agriculture, fleet management, engineering vehicles, mining equipment, logistics vehicles and industrial onboard terminal projects. We provide full Linux firmware customization, hardware modification and one-stop OEM & ODM solutions for system integrators.

Key Benefits

•Professional NXP i.MX 8M Mini Linux solution, ultra-stable system for 24/7 continuous industrial operation
•IP67 full waterproof, dustproof and anti-vibration design, adapted to harsh vehicle and field working conditions
•Built-in standard CANBus interface to support vehicle ECU data collection and vehicle diagnosis
•Low power consumption industrial processor, more stable and lower failure rate than consumer Android devices
•Rich industrial interfaces: RJ45, 4G module slot, GNSS, USB and extended serial ports
•Fully open Linux system, convenient for secondary development, protocol docking and function customization
•Support custom firmware, startup program, interface function and hardware structural modification

Application Scenarios

Industrial Fleet Management

Stable onboard data terminal for long-term vehicle tracking and status monitoring

Mining & Engineering Vehicles

Anti-vibration and dustproof industrial terminal for heavy equipment monitoring

Smart Logistics & Cold Chain

Low-power stable terminal for transportation data recording

Special Vehicle Monitoring

Custom Linux system equipment for professional vehicle IoT projects

Industrial Onboard Control Terminal

•Suitable for vehicle equipment control and data upload scenarios

Specification

Processor & System

CPU	NXP i. MX 8M Mini, ARM® Cortex®-A53, Quad-Core 1.6GHz
GPU	1×shader, Vivante GC320, Vivante GCNanoUltra
Operating System	Linux Debian 10
RAM	2GB LPDDR4 (Default)/ 4GB (Optional)
Storage	16GB eMMC (Default)/ 64GB (Optional)
Storage Expansion	Micro SD 1T

Display & Touch

LCD	10.1-inch IPS display (1280×800), 1000 nits brightness, sunlight visible
Touchscreen	Multi-touch Capacitive Touch Screen
Sound	Build-in 2W speaker
	Build-in microphones
Interfaces (On Tablet)	Type-C, 3.5mm Headphone Jack, SIM Card, Micro SD Card
Sensors	Ambient light sensor

Communication & Positioning

Bluetooth (Optional)	BLE 5.0
WLAN (Optional)	IEEE 802.11a/b/g/ac; 2.4GHz/5GHz
Mobile Broadband (Optional） (North America Version)	LTE-FDD: B2/B4/B12 LTE-TDD: B40 GSM/EDGE:B2/B4/B5
Mobile Broadband (Optional） (EU Version)	LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/EDGE: B3/B8
Mobile Broadband (Optional） (AU Version)	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD: B40 WCDMA: B1/B2/B5/B8 GSM/EDGE: B2/B3/B5/B8
GNSS (Optional）	GPS/GLONASS/Galileo

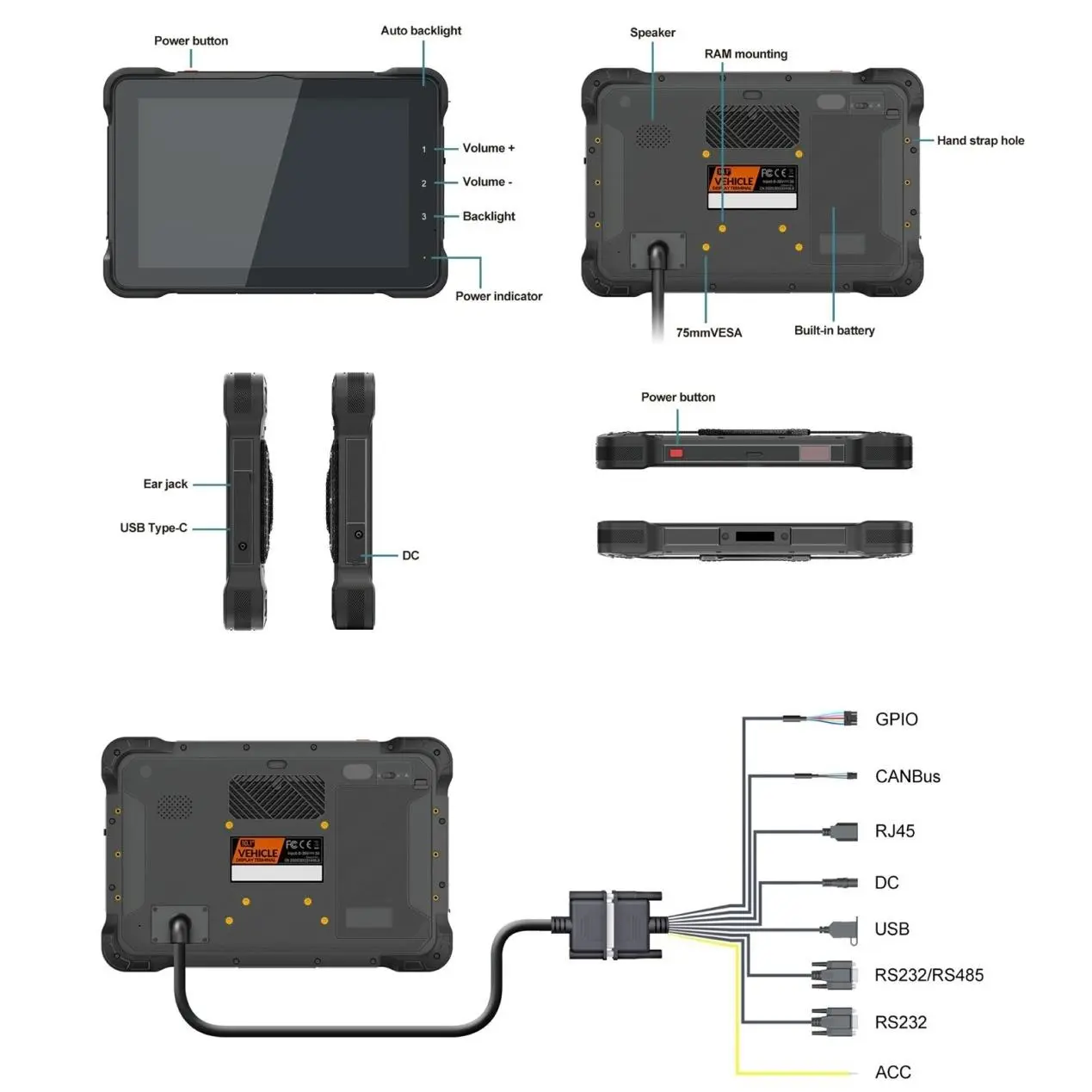

Industrial Interfaces (All in One Cable)

USB2.0 (Type-A)	×1
RS232	×2
ACC	×1
Power	×1
CAN Bus	×1
GPIO	×8
RJ45 (10/100)	×1
RS485	Optional

Protection & Environment

Gravity Drop Resistance Test	1.2m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6X (IEC 60529)
Water Resistance Test	IPX7 (IEC 60529)
Operating Temperature	-10℃~65℃ (14℉~149℉)
	-0℃~55℃ (32℉~131℉) (charging)
Storage Temperature	-20℃~70℃ (-4℉~158℉)

Power Supply

Power	DC9-36V (ISO 7637-II compliant)
Battery(Optional)	3.7V, 8000mAh Li-ion (Replaceable)
Physical Dimensions (W×H×D)	277×185×31.6mm
Weight	1357g

This Product is Under Protection of Patent Policy
Tablet Design Patent No: 2020030331416.8, Bracket Design Patent No: 2020030331417.2

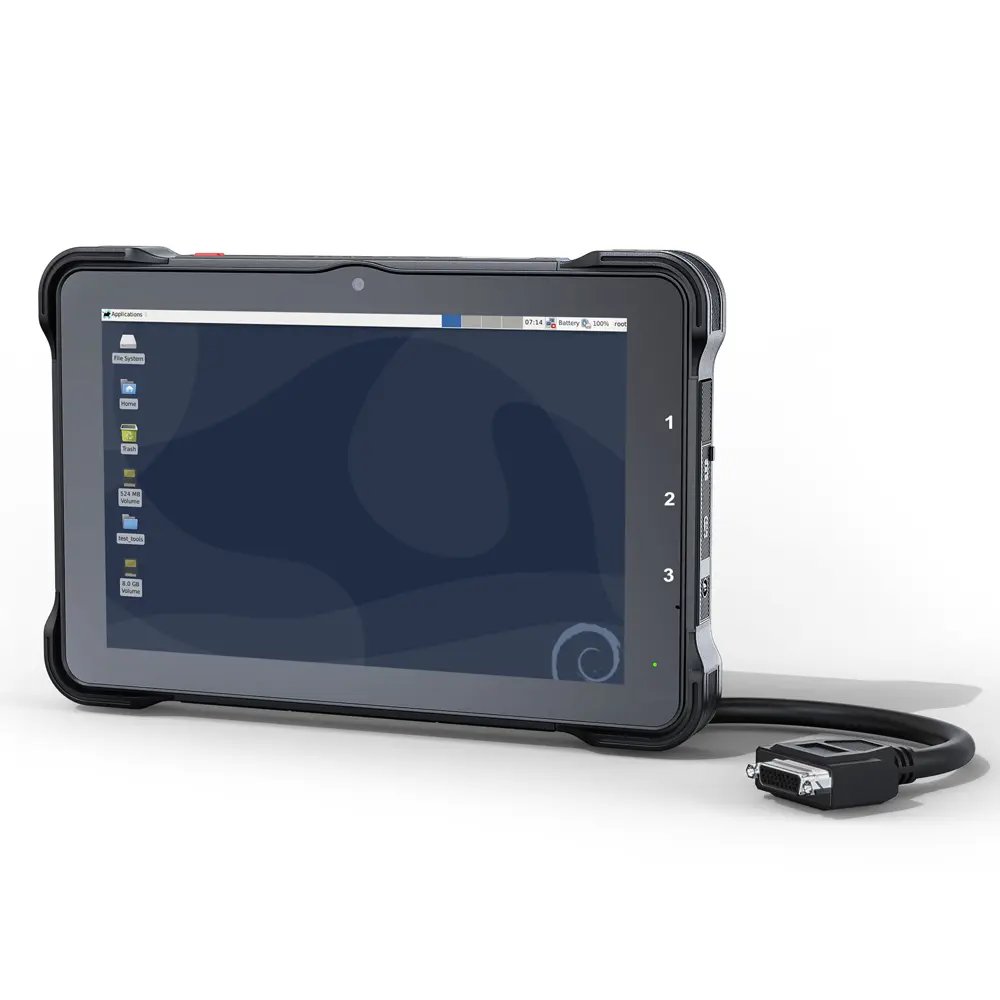

VT-10 IMX Multi-Angle View

Rugged Design • Industrial Build • 360° Detail Showcase

Customization Options

3RTablet provides professional Linux device customization services for industrial project clients:
•Custom Linux firmware, kernel modification and pre-installed industrial software
•Secondary development docking, protocol adaptation and function debugging
•Hardware interface addition, deletion and modification according to project needs
•Device appearance color, logo silk screen and structural customization
•Custom packaging, technical documents and exclusive project after-sales support

Frequently Asked Questions

1.Does VT-10 IMX support secondary development?

Yes. The Linux system is fully open. We provide complete source code support, development manuals and technical guidance for customer secondary development.
2.Can the device support CANBus vehicle data analysis?

Built-in standard CANBus interface, which can perfectly collect and parse vehicle bus data, suitable for various fleet monitoring projects.
3.Do you support customized functions and firmware?

We support all kinds of Linux system function customization, boot logo, software locking, private protocol docking and hardware modification.
4.What is the MOQ for customized orders?

Standard devices support sample orders. Customized firmware and structural projects have flexible MOQ according to customer needs.
5.What is the warranty and technical support policy?

1-year standard warranty. We provide long-term firmware maintenance and professional engineer technical support for project customers.
