Fleet Safety with ADAS and DMS Cameras: Complete Guide to Vehicle Camera Systems

A single fleet accident can cost tens of thousands of dollars. The most effective safety upgrade you can make is a camera system with ADAS and DMS built in. 3RTablet offers a complete fleet safety ecosystem spanning AHD cameras, rugged in-vehicle tablets with on-device AI processing, and telematics connectivity.

Understanding ADAS and DMS

ADAS - Advanced Driver-Assistance System

ADAS uses a forward-facing camera mounted on the windshield to watch the road ahead. 3Rtablet ADAS includes LDW (Lane Departure Warning), FCW (Forward Collision Warning), and HMW (Headway Monitoring Warning).

DMS - Driver Monitoring System

DMS uses an inward-facing camera to track driver behavior through facial recognition and eye tracking. 3Rtablet DMS covers nine functions: identity recognition, smoking detection, phone call detection, yawning detection, camera blocking, driver abnormality, mouth covering, eyes closed, and distracted driving.

Vehicle Camera Technologies

3Rtablet offers following camera options:

- AHD 720S -- Standard 720p forward-facing camera.

- AHD 720R -- 720p rear-view camera.

- AHD 720Mini -- Ultra-compact.

- AHD 720D -- Door-mounted camera.

- AHD 720DMS -- Inward-facing for DMS.

- AHD 1080ADAS -- 1080p for ADAS.

- AHD 1080Dual -- Dual-lens.

- PDR-C1 -- AI pedestrian detection camera for forklift safety.

- WiFi Camera -- Wireless for trailers.

Camera + Tablet Integration: Multi-Platform AHD Support

3Rtablet offers multiple rugged tablets with multi-channel AHD input and on-device ADAS/DMS AI:

VT-7 PRO AHD. 7-inch, up to 4CH AHD, on-device ADAS/DMS AI.

VT-10 PRO AHD. 10-inch, 4CH AHD input, ADAS/DMS AI processing, larger display.

VT-7A PRO AHD. 7-inch, AHD input, ADAS/DMS processing, Android 13 platform.

ST-7. 7-inch, up to 6CH AHD, Android 13 platform, configurable GPIO inputs for custom screen display switching.

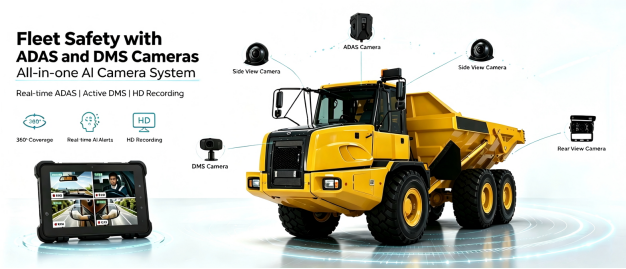

Complete Fleet Safety Ecosystem

AHD cameras capture HD video from all angles.

The rugged tablet displays multi-channel video and runs on-device ADAS/DMS AI.

The PDR-C1 provides AI-powered pedestrian detection around the vehicle.

The VT-BOX II transmits safety data to the cloud over 4G or WiFi.

Fleet management software provides dashcam review and safety analytics.

Deployment Scenarios

Bus Fleet

ADAS forward camera for collision warnings, DMS inward camera for driver fatigue monitoring, side cameras for blind-spot coverage. VT-7 PRO(AHD) or VT-10 PRO AHD serves as display and AI hub.

Logistics Truck

Multi-camera surround view with VT-7A PRO AHD as driver interface. VT-BOX II for telematics data upload.

Taxi Fleet

DMS for driver monitoring, ADAS forward camera for collision warnings. Compact ST-7 fits neatly in dashboards.

Forklift Safety

PDR-C1 AI pedestrian detection camera paired with AHD cameras gives 360-degree awareness around the forklift, detecting people in blind spots. Pair with VT-7 PRO AHD or VT-7A PRO AHD.

Smart Waste Management

AHD 720R rear cameras for reversing safety, AHD 720S side cameras for blind-spot elimination, interior DMS camera, plus PDR-C1 AI pedestrian detection monitoring people near the vehicle.

Construction and Mining

AHD rear-view cameras eliminate blind spots. AHD 1080Dual covers both work area and operator cab from a single device.

With ADAS & DMS functions, a full camera lineup, and multiple tablet platforms with on-device AI, 3Rtablet delivers All-in-one solution for a modern fleet safety system. Contact us at aiwebewkdg3.cmerweb.com.
